Workshop 9.7a - Nested designs (mixed effects models)

Reading data into R

> name <- read.table('filename.csv', header=T, sep=',', row.names=column, strip.white=T)

phasmid <- read.data("phasmid.csv", header = T, sep = ",", row.names = 1, strip.white = T)

End of instructions

Nested ANOVA

A nested ANOVA is a simple extension of the single factor ANOVA. An additional factor (Factor B) is added that is nested within the main factor of interest (Factor A). Nested factors are incorporated in situations where researches envisage potentially large amounts of variation between different sets of replicates within the main Factor.
For example, a limnologist investigating the effect of flow (Factor A: high, medium and low) on macroinvertebate density, might collect samples from a number of high, medium and low flow streams. However, the limnologist might expect that many other factors (perhaps more important than stream flow) also influence the density of macroinvertebrates and that even samples collected in close proximity to one another might be expected to vary considerably in density of macroinvertebrates. Such variability increases the unexplained variability and therefore has the potential to make it very difficult to pick up the effect of the actual factor of interest (in this case flow).
In an attempt to combat this, the researcher decides to collect multiple samples from within each stream. If some of the unexplained variability can be explained by variation between samples within streams, then the test of flow will be more sensitive.
This is called a nested ANOVA, an additional factor (Factor B: stream) has been introduce within the main factor (Factor A: flow). Factor A is a fixed factor as we are only interested in the specific levels chosen (e.g. high, medium and low flow). Factor B however, is a random as we are not just interested in the specific streams that were sampled, we are interested in all the possible streams that they represent. In a nested ANOVA the categories of the Factor B nested within each level of Factor A are different. E.g. the streams used for each flow type are different. Therefore it is not possible to test for an interaction between Flow type and stream.

There are two null hypotheses being tested in a two factor nested ANOVA. H₀ main effect: no effect of Factor A (flow) H₀: = &mu₁ = &mu₂ = ... = &mu_i = &mu (as for single factor ANOVA). H₀ nesting effect: no effect of Factor B (stream) nested within Factor A (flow). Technically it is that there is no added variance due to differences between all the possible levels of Factor B with any level of Factor A. E.g., that there is no added variance due to differences between all possible high flow streams, or between all possible medium flow streams or between all possible low flow streams. Diagram shows layout of nested design with three treatments (different pattern fills).

End of instructions

Convert numeric variable into a factor

> data$var <- as.factor(data$var)

End of instructions

Nested ANOVA assumptions

In ANOVA, the assumptions of normality and variance homogeneity apply to the residuals for the test of interest. In this example, the nested factor (Factor B, SITE) is random. Therefore, the normality and heterogeneity of variance assumptions for Factor A (SEASON) must be based on the distribution, mean and variance of the response variable (S4DUGES) for each level of Factor A using the means of Factor B within each Factor A as the observations (since the error term for Factor A (SEASON) is the variation in the response variable between categories of Factor B within each level of Factor A (MS_SITE). Calculate the mean from each level of Factor B (SITE), and use these means to calculate the mean, variance and distribution of each level of Factor A (SEASON).

# aggregate the data set by calculating the means for each level of the nesting factor
> name.ag <- aggregate(dataset, list(Name1=FactorA, Name2=FactorB), mean)
#OR perhaps more efficiently
library(lme4)
name.ag <- gsummary(dataset, groups=FactorB)
# use the aggregated means to produce the boxplots
> boxplot(dv~FactorA, name.ag)

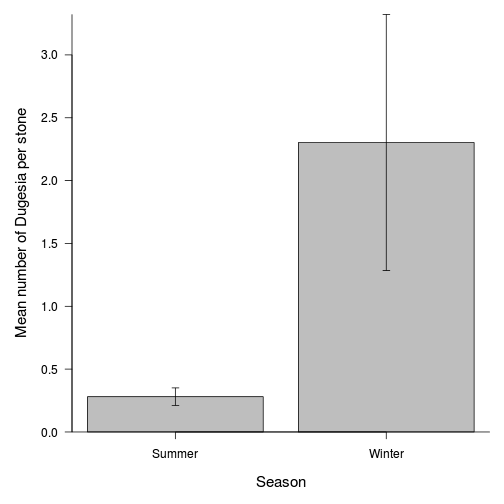

This data set generates two boxplots, each constructed from only 3 values and thus of questionable value.

End of instructions

Nested ANOVA assumptions

# fit the heirachical linear model
> name.aov <- aov(dv~FactorA + Error(FactorB), data=data)
# print out the ANOVA strata
> summary(name.aov)

# fit the heirachical linear model
> curdies.aov <- aov(S4DUGES~SEASON + Error(SITE), data=curdies)
# print out the ANOVA strata
> summary(curdies.aov)

> curdies.aov1 <- aov(S4DUGES~SEASON + SITE, data=curdies)
> summary(curdies.aov)

End of instructions

Two factor ANOVA

Statistical models that incorporate more than one categorical predictor variable are broadly referred to as multivariate analysis of variance. There are two main reasons for the inclusion of multiple factors:

1. To attempt to reduce the unexplained (or residual) variation in the response variable and therefore increase the sensitivity of the main effect test.
2. To examine the interaction between factors. That is, whether the effect of one factor on the response variable is dependent on other factor(s) (consistent across all levels of other factor(s)).

Fully factorial linear models are used when the design incorporates two or more factors (independent, categorical variables) that are crossed with each other. That is, all combinations of the factors are included in the design and every level (group) of each factor occurs in combination with every level of the other factor(s). Furthermore, each combination is replicated.

In fully factorial designs both factors are equally important (potentially), and since all factors are crossed, we can also test whether there is an interaction between the factors (does the effect of one factor depend on the level of the other factor(s)). Graphs above depict a) interaction, b) no interaction.

For example, Quinn (1988) investigated the effects of season (two levels, winter/spring and summer/autumn) and adult density (four levels, 8, 15, 30 and 45 animals per 225cm²) on the number of limpet egg masses. As the design was fully crossed (all four densities were used in each season), he was also able to test for an interaction between season and density. That is, was the effect of density consistent across both seasons and, was the effect of season consistent across all densities.

Diagram shows layout of 2 factor fully crossed design. The two factors (each with two levels) are color (black or gray) and pattern (solid or striped). There are three experimental units (replicates) per treatment combination.

End of instructions

Two-factor ANOVA

> name.aov <- aov(dv~factor1 * factor2, data=data)

End of instructions

Fully factorial ANOVA assumption checking

The assumptions of normality and homogeneity of variance apply to each of the factor level combinations, since it is the replicate observations of these that are the test residuals. If the design has two factors (IV1 and IV2) with three and four levels (groups) respectively within these factors, then a boxplot of each of the 3x4=12 combinations needs to be constructed. It is recommended that a variable (called GROUP) be setup to represent the combination of the two categorical (factor) variables.

Simply construct a boxplot with the dependent variable on the y-axis and GROUP on the x-axis. Visually assess whether the data from each group is normal (or at least that the groups are not all consistently skewed in the same direction), and whether the spread of data is each group is similar (or at least not related to the mean for that group). The GROUP variable can also assist in calculating the mean and variance for each group, to further assess variance homogeneity.

End of instructions

Factorial boxplots

> boxplot(dv~factor1*factor2,data=data)

End of instructions

Plotting mean vs variance

# first calculate the means and variances
> means <- tapply(data$dv, list(data$factor1, data$factor2), mean)
> vars <- tapply(data$dv, list(data$factor1, data$factor2), var)
# then plot the mean against variance
> plot(means,vars)

End of instructions

Model balance

Balanced models are those models that have equal sample sizes for each level of a treatment. Unequal sample sizes are generally problematic for statistical analyses as they can be the source of unequal variances. They are additionally problematic for multifactor designs because of the way that total variability is partitioned into the contributions of each of the main effects as well as the contributions of interactions (ie the calculations of sums of squares and degrees of freedom). Sums of squares (and degrees of freedom) are usually (type I SS) partitioned additively. That is:
SS_Total=SS_A+SS_B+SS_AB+SS_Residual, and
df_Total=df_A+df_B+df_AB+df_Residual
. In practice, these formulas are used in reverse. For example, if the model was entered as DV~A+B+AB, first SS_Residual is calculated followed by SS_AB, then SS_B. SS_A is thus calculated as the total sums of squares minus what has already been partitioned off to other terms (SS_A=SS_Total-SS_B+SS_AB+SS_Residual). If the model is balanced, then it doesn't matter what order the model is constructed (DV~B+A+AB will be equivalent).

However, in unbalanced designs, SS cannot be partitioned additively, that is the actual SS of each of the terms does not add up to SS_Total (SS_Total=SS_A+SS_B+SS_AB+SS_Residual). Of course, when SS is partitioned it all must add up. Consequently, the SS of the last term to be calculated will not be correct. Therefore, in unbalanced designs, SS values for the terms are different (and therefore so are the F-ratios etc) depending on the order in which the terms are added - an undesirable situation.

To account for this, there are alternative methods of calculating SS for the main effects (all provide same SS for interaction terms and residuals).

• Type I - are the additive SS, calculated by comparing the fit of successive addition of the model terms in a hierarchical sequence (interaction terms first).
• Type II - SS for any given model term are determined by comparing the fit (deviance) of a model with the term (and all other terms of the same or lower level) to a model without that term, but with the other terms of the same or lower level
• Type III - SS for any given model term are determined by comparing the fit (deviance) of a full model with the term to a model without that term

> !is.list(replications(formula,data))

End of instructions

Linear regression diagnostics

> plot(name.lm)

End of instructions

ANOVA table

#print a summary of the ANOVA table
> anova(name.aov)

End of instructions

Interaction plot

Interaction plots display the degree of consistency (or lack of) of the effect of one factor across each level of another factor. Interaction plots can be either bar or line graphs, however line graphs are more effective. The x-axis represents the levels of one factor, and a separate line in drawn for each level of the other factor. The following interaction plots represent two factors, A (with levels A1, A2, A3) and B (with levels B1, B2).

The parallel lines of first plot clearly indicate no interaction. The effect of factor A is consistent for both levels of factor B and visa versa. The middle plot demonstrates a moderate interaction and bottom plot illustrates a severe interaction. Clearly, whether or not there is an effect of factor B (e.g. B1 > B2 or B2 > B1) depends on the level of factor A. The trend is not consistent.

End of instructions

R Interaction plot

> interaction.plot(dataset$Factor1, dataset$Factor2, dataset$dv)

> interaction.plot(copper$DIST, copper$COPPER, dataset$WORMS)

End of instructions

Specific comparisons of means

Following a significant ANOVA result, it is often desirable to specifically compare group means to determine which groups are significantly different. However, multiple comparisons lead to two statistical problems. Firstly, multiple significance tests increase the Type I errors (&alpha, the probability of falsely rejecting H₀). E.g., testing for differences between 5 groups requires ten pairwise comparisons. If the &alpha for each test is 0.05 (5%), then the probability of at least one Type I error for the family of 10 tests is 0.4 (40%). Secondly, the outcome of each test needs to be independent (orthogonality). E.g. if A>B and B>C then we already know the result of A vs. C.

Post-hoc unplanned pairwise comparisons (e.g. Tukey's test) compare all possible pairs of group means and are useful in an exploratory fashion to reveal major differences. Tukey's test control the family-wise Type I error rate to no more that 0.05. However, this reduces the power of each of the pairwise comparisons, and only very large differences are detected (a consequence that exacerbates with an increasing number of groups).

Planned comparisons are specific comparisons that are usually planned during the design stage of the experiment. No more than (p-1, where p is the number of groups) comparisons can be made, however, each comparison (provided it is non-orthogonal) can be tested at &alpha = 0.05. Amongst all possible pairwise comparisons, specific comparisons are selected, while other meaningless (within the biological context of the investigation) are ignored.

Planned comparisons are defined using what are known as contrasts coefficients. These coefficients are a set of numbers that indicate which groups are to be compared, and what the relative contribution of each group is to the comparison. For example, if a factor has four groups (A, B, C and D) and you wish to specifically compare groups A and B, the contrast coefficients for this comparison would be 1, -1, 0,and 0 respectively. This indicates that groups A and B are to be compared (since their signs oppose) and that groups C and D are omitted from the specific comparison (their values are 0).

It is also possible to compare the average of two or more groups with the average of other groups. For example, to compare the average of groups A and B with the average of group C, the contrast coefficients would be 1, 1, -2, and 0 respectively. Note that 0.5, 0.5, 1 and 0 would be equivalent.

The following points relate to the specification of contrast coefficients:

1. The sum of the coefficients should equal 0
2. Groups to be compared should have opposing signs

End of instructions

Tukey's Test

# load the 'multcomp' package
> library(multcomp)
# perform Tukey's test
> summary(simtest(dv~factor1*factor2, whichf='factor', data=data, type="Tukey"))
# OR the more up to date method
> summary(glht(data.aov, linfct=mcp(factor="Tukey")))

End of instructions

Simple Main Effects

> library(biology)
> quinn.aov1 <- aov(SQRTRECRUITS~DENSITY, data=quinn, subset=c(SEASON=='Summer'))
> AnovaM(lm(quinn.aov1), lm(quinn.aov),type="II")

End of instructions

Randomized complete block (RCB) designs

These are designs where one factor is a blocking variable (Factor B) and the other variable (Factor A) is the main treatment factor of interest. These designs are used in situations where the environment is potentially heterogeneous enough to substantially increase the variability in the response variable and thus obscure the effects of the main factor. Experimental units are grouped into blocks (units of space or time that are likely to have less variable background conditions) and then each level of the treatment factor is applied to a single unit within each block. By grouping the experimental units together into blocks, some of the total variability in the response variable that is not explained by the main factor may be explained by the blocks. If so, the residual (unexplained) variation will be reduced resulting in more precise estimates of parameters and more powerful tests of treatments.

A plant ecologist was investigating the effects of leaf damage on plant chemical defenses. Since individual trees vary greatly in the degree of chemical defense, she applied each of three artificial leaf damage treatments (heavy, medium and light damage) to each tree. She applied one of three treatments to three branches within eight randomly selected trees. Trees were the blocks. The diagram shows the layout of a blocking design. The main factor has three treatments (pattern fills), each of which are applied randomly within 3 randomly selected blocks. The decision to include a blocking factor (rather than single factor, completely random) depends on whether the experimental units (replicates) within a block are likely to be more similar to one another than those between blocks and whether the reduction in MS_Residual is likely to compensate for the for the loss of residual df.

End of instructions

Randomized blocks

> name.aov <- aov(dv~factorA + Error(factorB), data=data)

End of instructions

Split-plot designs

Split-plot designs can be thought of as a combination of a randomized complete block (RCB) and nested designs. In their simplest form, they represent a RCB design, with a second factor applied to the whole blocks. One factor (Factor C) is applied to experimental units (usually randomly positioned) within each block (now referred to as plots, or Factor B). These factors are the Within-plot factors. A second factor (Between-plots factor, or Factor A) is then applied to the whole plots, and these plots are replicated. Hence a nested design applies between Factor A and the plots, and a blocking design applies between Factor C and the plots. Factor A is also crossed with Factor C, and therefore there is a test of the interaction between the two main factors.


Note that if there are no replicate units of Factor C within each plot (that is if each level of Factor C is applied only once to each plot), then the interaction of Factor C by Plots within Factor A represents the overall residual. However, since the plots are usually random factors, the effects of Factor A must be tested against the Plots within Factor A term.
If there there are replicate units of Factor C within each plot, then the Factor A by Plots within Factor A by Factor C is the overal residual.

End of instructions

Aggregate a data set

> name.ag <- aggregate(dataset, list(NAME=FactorA, NAME1=FactorB), mean)
# OR
> library(lme4)
> name.ag<-gsummary(dataset, groups=dataset$FactorA)

> cu.ag <- aggregate(copper, list(COPPER=copper$COPPER, PLATE=copper$PLATE), mean)
# OR
> library(lme4) > cu.ag <- aggregate(copper, groups=copper$PLATE)

End of instructions

Boxplot from aggregated data set

> boxplot(name.ag$dv~name.ag$FactorA)

> boxplot(cu.ag$WORMS ~ cu.ag$COPPER)

End of instructions

R Compound symmetry/sphericity

# source Murray's syntax for dealing with sphericity
> library(biology)
# after fitting a randomized block, repeated measures or split-plot
> epsi.GG.HF(name.aov)

End of instructions

R Split-plot

# Fit the linear model with the different error strata
> name.aov <- aov(dv ~ FactorA + FactorC + FactorA:FactorC + Error(FactorB), data=dataset))
> AnovaM(name.aov) # alternatively, if sphericity is an issue > AnovaM(name.aov, RM=T)

> copper.aov <- aov(WORMS ~ COPPER + DIST + COPPER:DIST + Error(PLATE), data=copper))
> AnovaM(copper.aov, RM=T)

End of instructions

Repeated Measures

Simple repeated measures designs and similar to Randomized complete block (RCB) designs. In the same way that we could explain some of the residual variation by blocking, we can also reduce the residual variation by removing the between-replicate variation that exists at the start of the experiment. This is achieved by applying each treatments (repeated measures) to the same subjects, rather than using different subjects for each treatment. In this way it is the same as a RCB. Where it differs from a RCB is that each of the treatments cannot be applied to the blocks (subjects) at the same time. For example, it is not possible to determine the effects of different drugs on the heart rate of rats if each of the drugs is applied at the same time! Each of the treatments should be applied in random order, however, when the repeated factor is time, this is not possible. The subjects (blocks or plots) are always a random factor. If a second factor is applied at the level of the whole subject and over each of the repeated measures (e.g. subjects are of one of two species), the analysis then resembles a splitplot design, where this second factor is the between subjects effect.


A agricultural scientist was investigating the effects of fiber on the digestibility of pastural grasses by cows. Ten randomly selected cows of two different breeds (five of each) were each fed a random sequence of four food types (of different fiber levels). After a week of feeding on a single food type, the digestibility of the food was assessed. Individual cows represented the subjects. Breed of cow was the between subjects effect and food fiber level was the within subjects effect. Diagram illustrates layout of 2 Factor repeated measures. Rectangles represent subjects. Squares represent the within subject treatments (random sequence represents the order in which each treatment is applied). Hence there are four repeated measures. There are two levels of the between subjects effect (pattern fill of rectangles).

End of instructions

R Compound symmetry/sphericity

# source Murray's syntax for dealing with sphericity
> library(biology)
# after fitting a randomized block, repeated measures or split-plot
> epsi.GG.HF(name.aov)

End of instructions
