Required

• git

• github account

• RStudio or text editor

Version control

Version control

Version control

• large space requirements
• difficult to collaborate

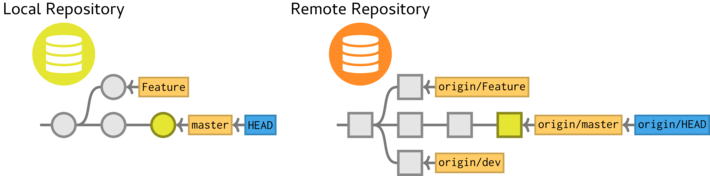

Git - overview

Git - is a distributed version control system

Git - stores snapshots of the filesystem - commits

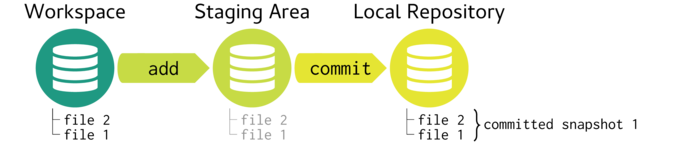

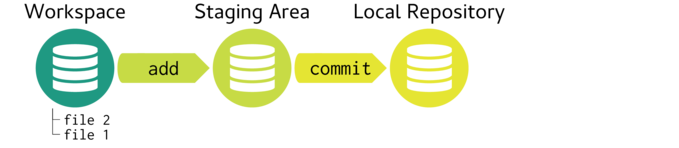

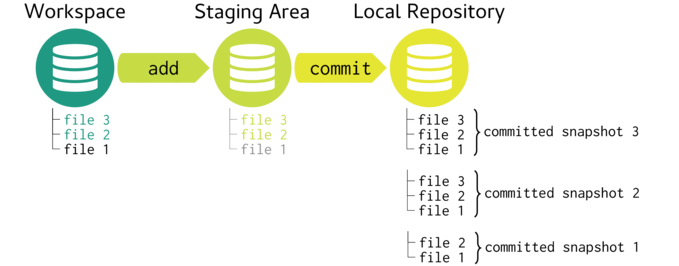

The system consists of three trees:

Git - overview

Files can be in one of four states:

• untracked

Git - overview

Files can be in one of four states:

• untracked
• staged

Git - overview

Files can be in one of four states:

• untracked
• staged
• committed

Git - overview

Files can be in one of four states:

• untracked
• staged
• committed
• modified

Git - overview

Git - overview

Git - configuration

git config --global user.name "Your name"
git config --global user.email "your_email@whatever.com"

Git - new repository

mkdir ~/tmp/Test_repo
cd ~/tmp/Test_repo

git init

Initialized empty Git repository in /home/murray/tmp/Test_repo/.git/

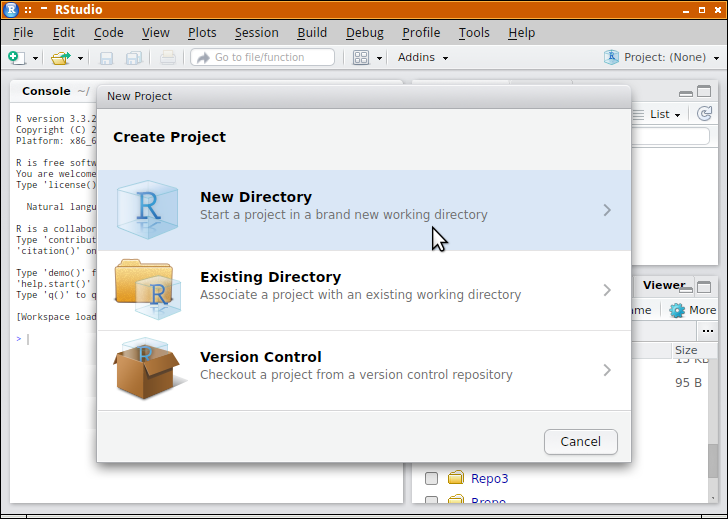

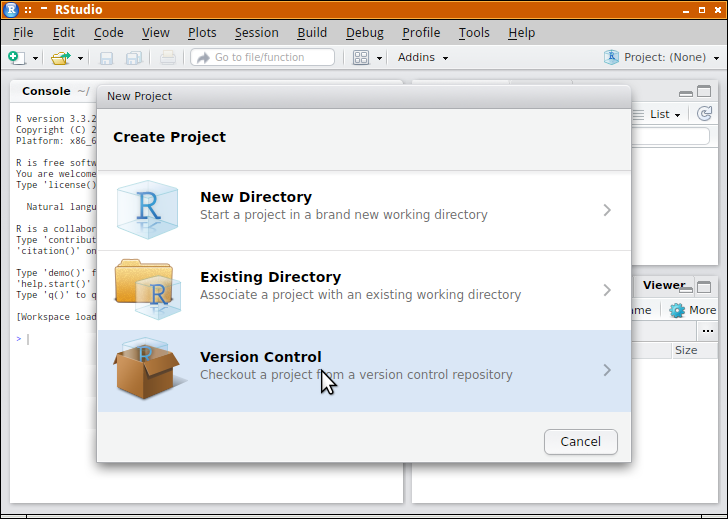

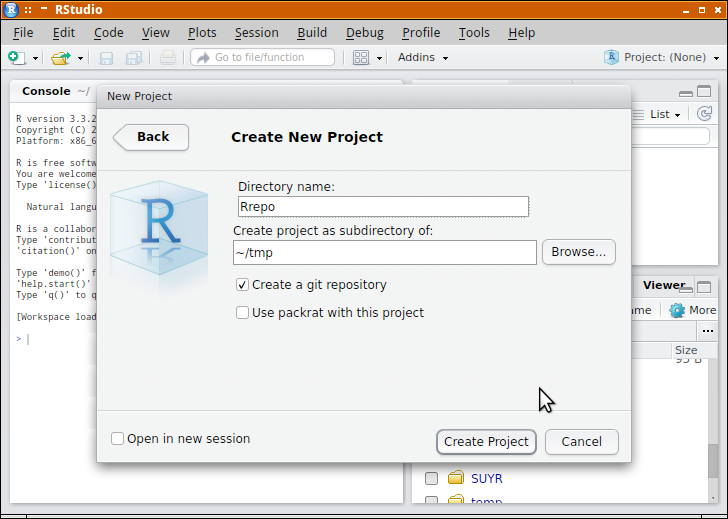

RStudio

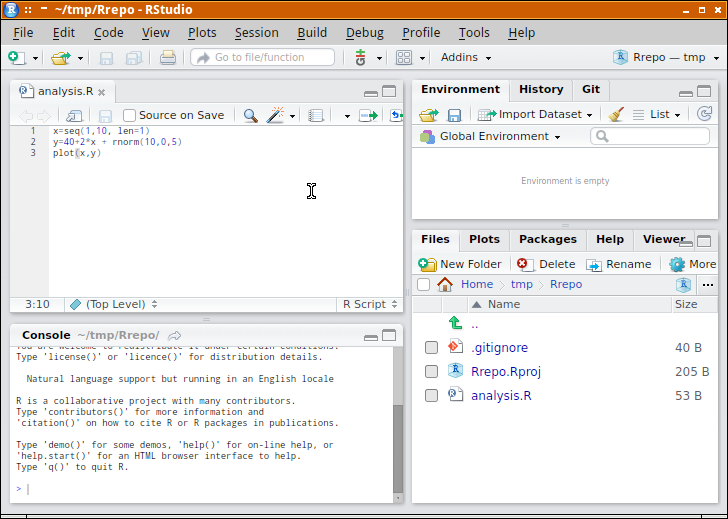

Git - adding content

Create a file (text, code etc)

• those using R, call it analysis.R

x=seq(1, 10, len=1)
y=40*2 + rnorm(10,0,5)
plot(x,y)

Otherwise, create any kind of file (in the folder we just created)

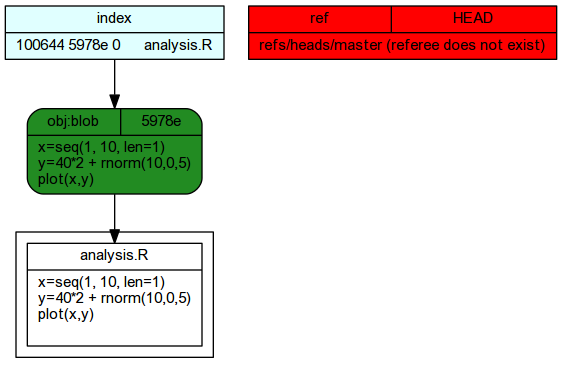

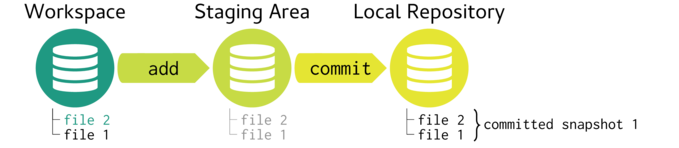

Git - adding content

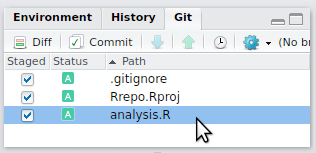

Stage the changes (add)

git add <file(s)>

For example:

git add analysis.R

RStudio

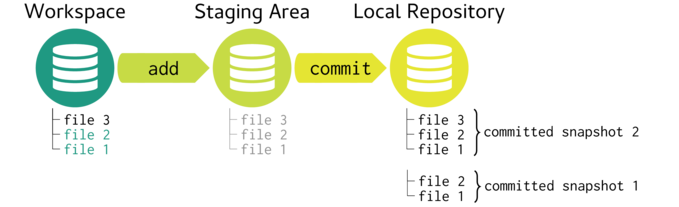

Git - adding content

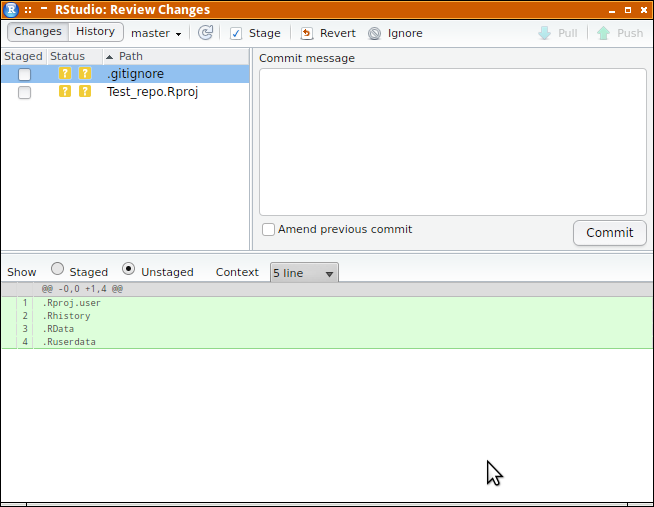

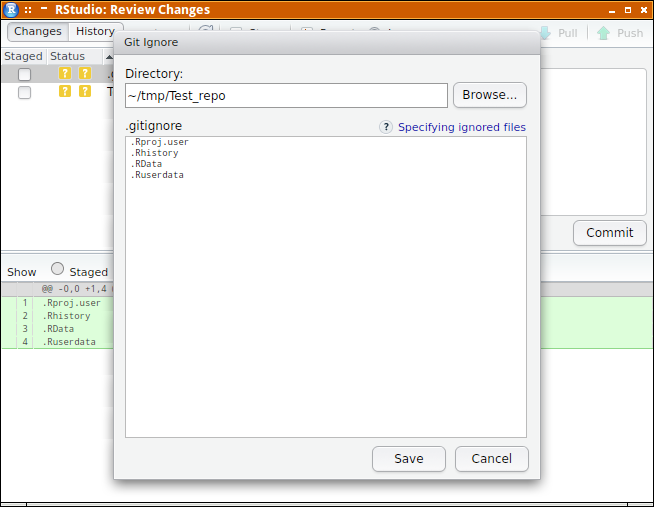

Git - .gitignore

RStudio

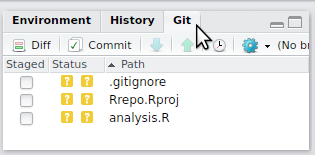

Git - status

git status

On branch master

Initial commit

Changes to be committed:
  (use "git rm --cached <file>..." to unstage)

    new file:   analysis.R

RStudio

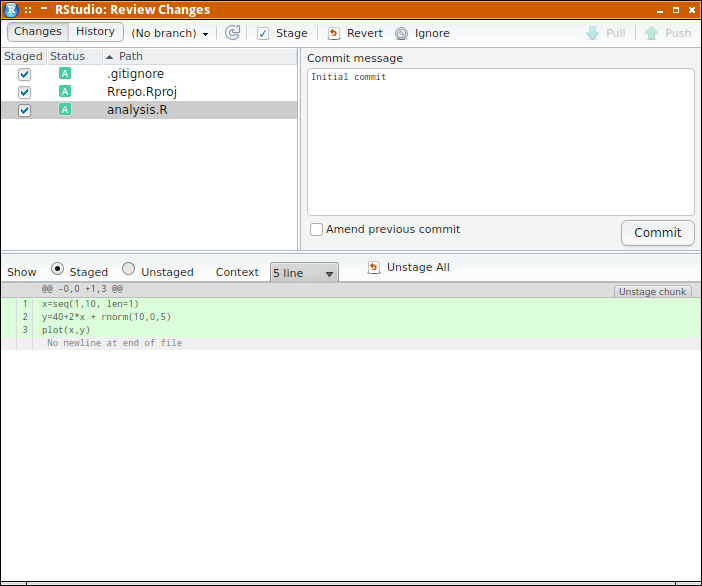

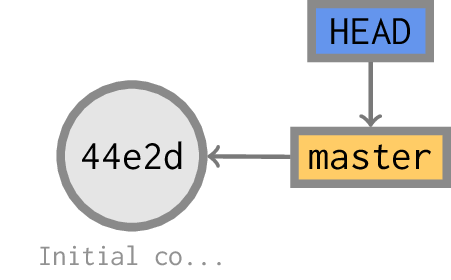

Git - committing

git commit -m 'Initial commit'

[master (root-commit) 44e2d24] Initial commit
 1 file changed, 3 insertions(+)
 create mode 100644 analysis.R

RStudio

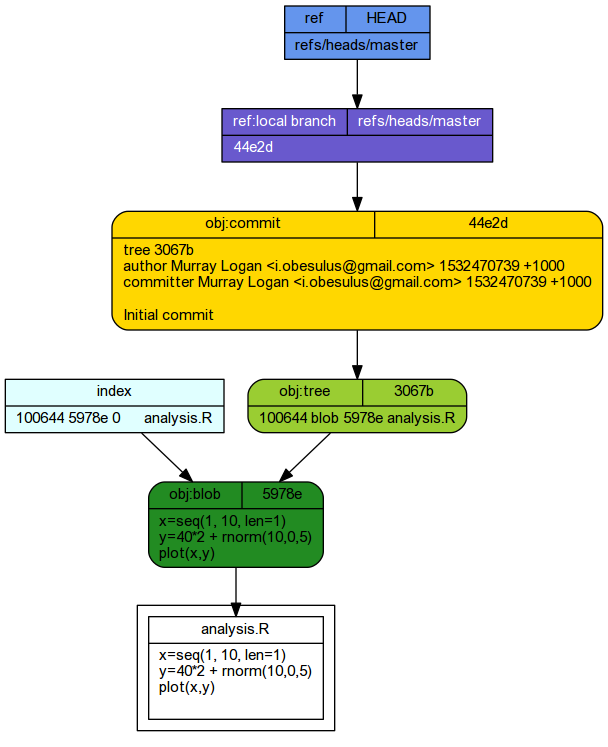

Git - committing

Git - additional edits

• Make some changes to the file, stage (add) and commit

x=seq(1, 10, len=1)
y=40*2 + rnorm(10,0,5)
plot(x,y)
summary(x)

[master 91c47a6] Added summary for x
 1 file changed, 1 insertion(+)

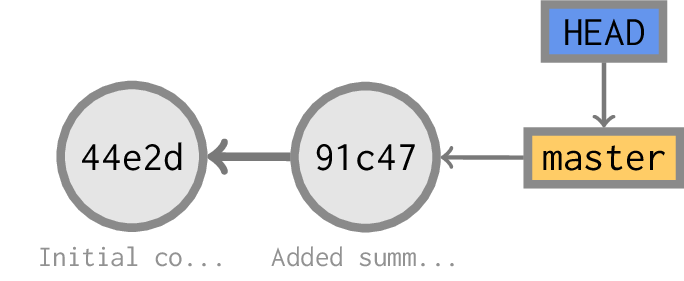

Git - additional edits

• Let remove the summary(x) and add it to another file, stage (add) and commit

analysis.R

x=seq(1, 10, len=1)
y=40*2 + rnorm(10,0,5)
plot(x,y)

summary.R

summary(x)
summary(y)

[master 0d7cc28] Added summaries for x and y
 2 files changed, 2 insertions(+), 1 deletion(-)
 create mode 100644 summary.R

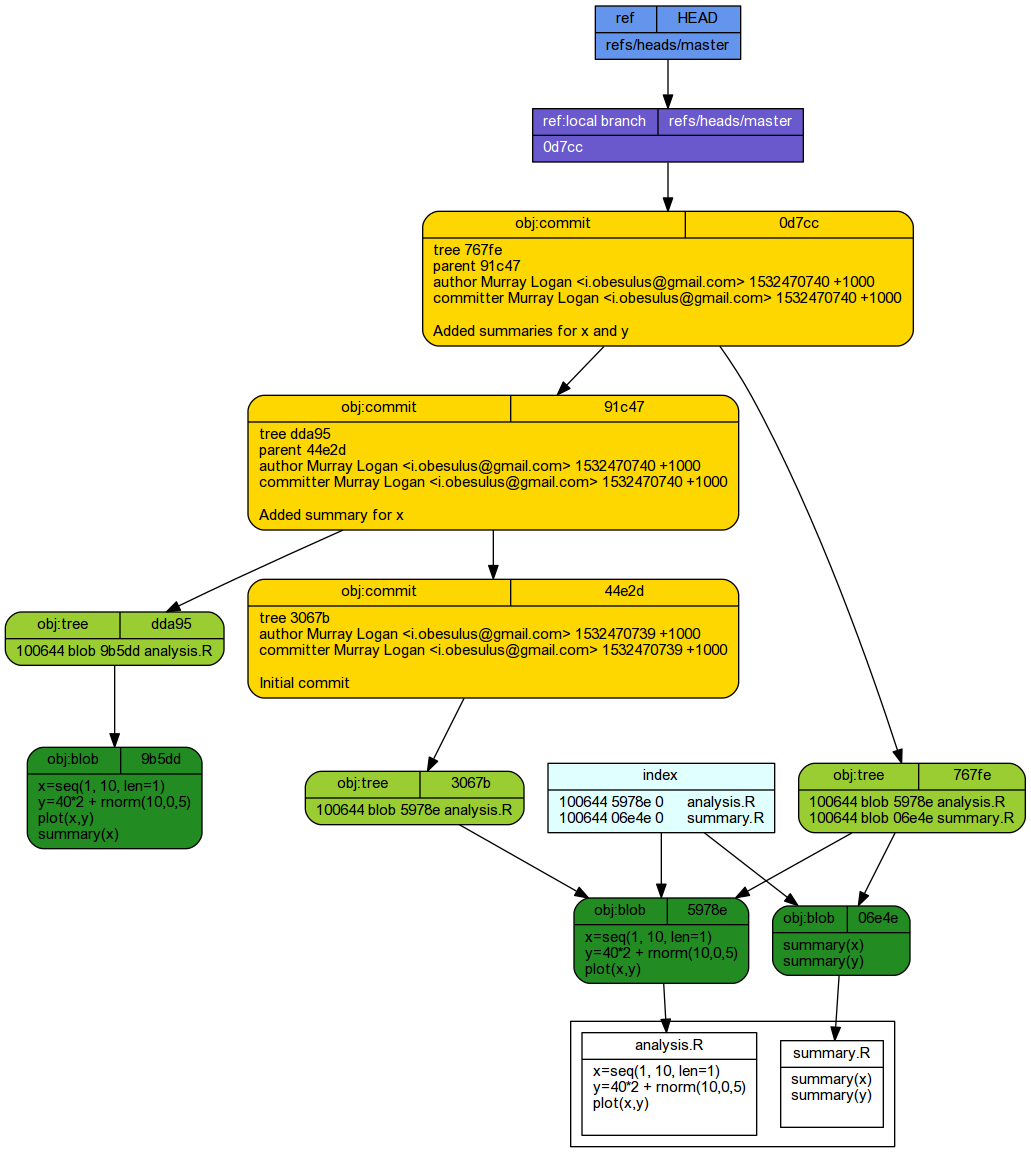

Git - additional edits

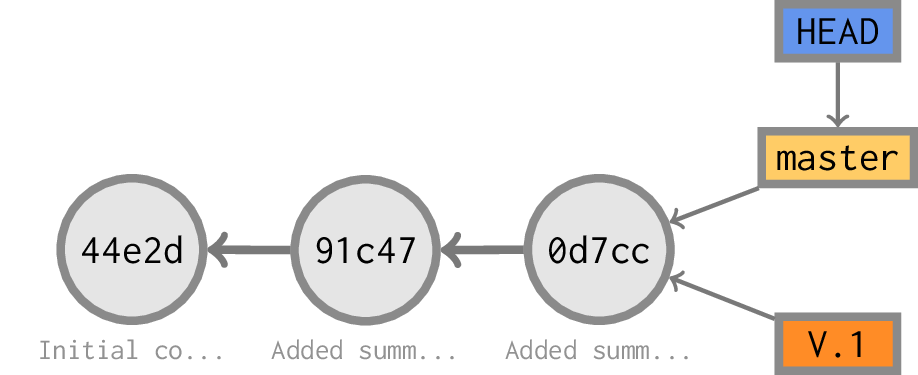

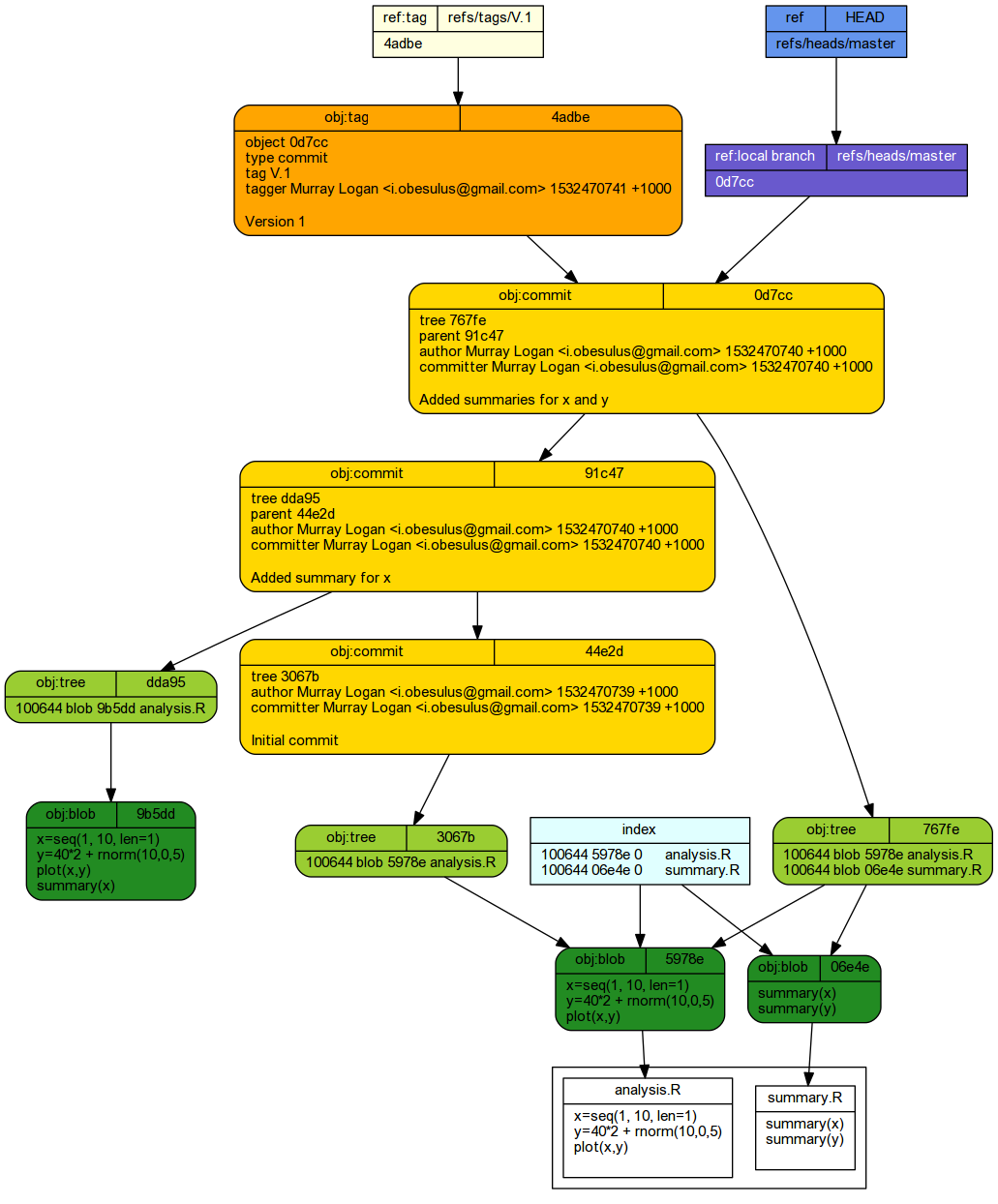

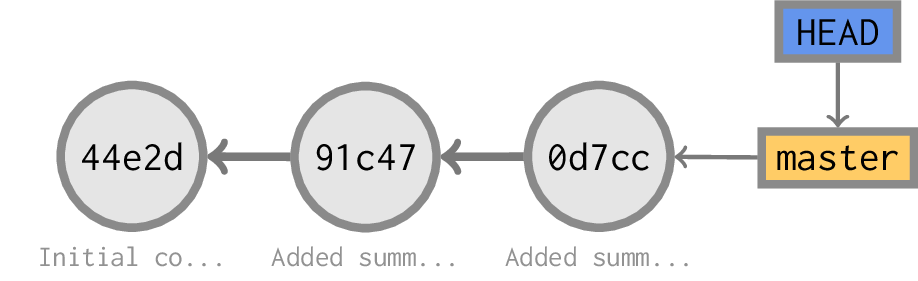

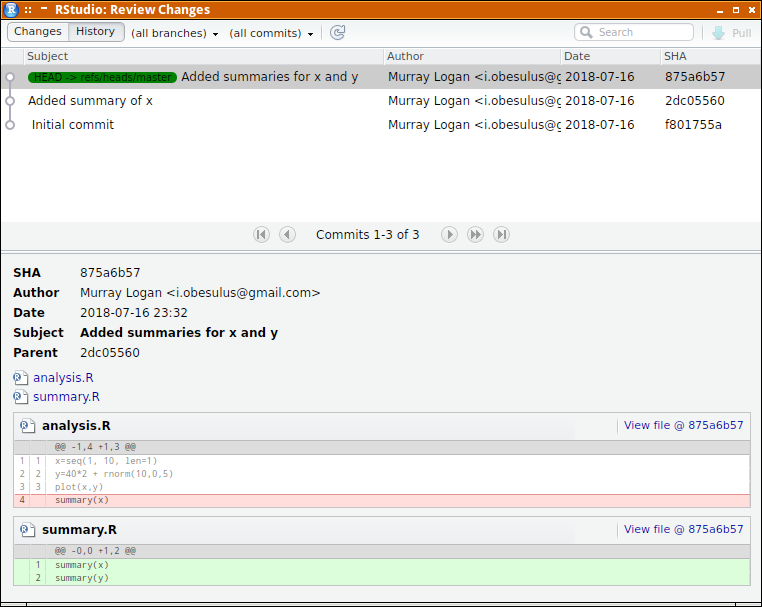

Git - history (logs)

git log --oneline --graph --decorate

* 0d7cc28 (HEAD -> master) Added summaries for x and y
* 91c47a6 Added summary for x
* 44e2d24 Initial commit

RStudio

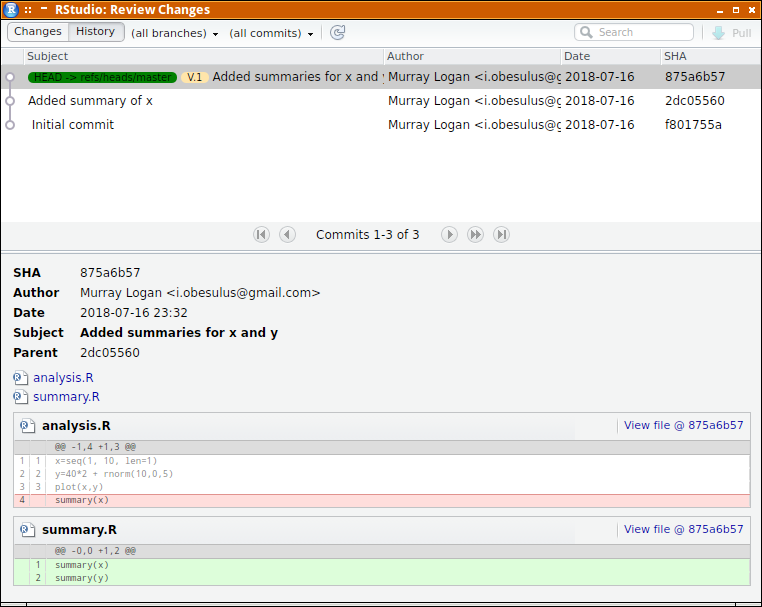

Git - tags

git tag -a <tag> -m <message>

For example:

git tag -a 'V.1' -m 'Version 1'

RStudio

Git - tags

Git - rolling back

1. checkout

2. reset

3. revert

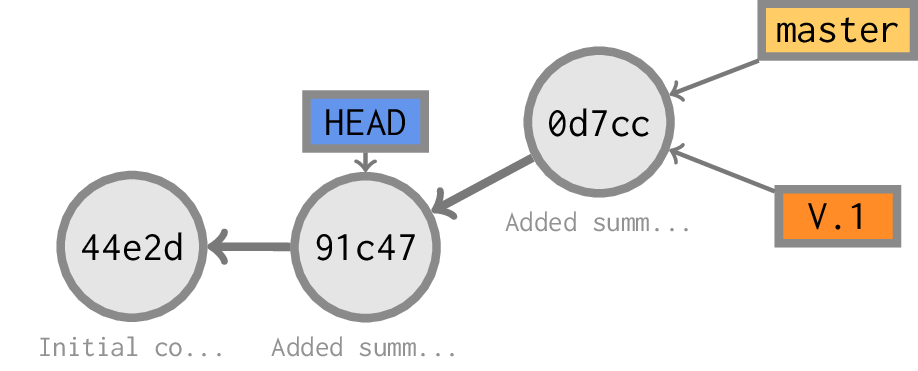

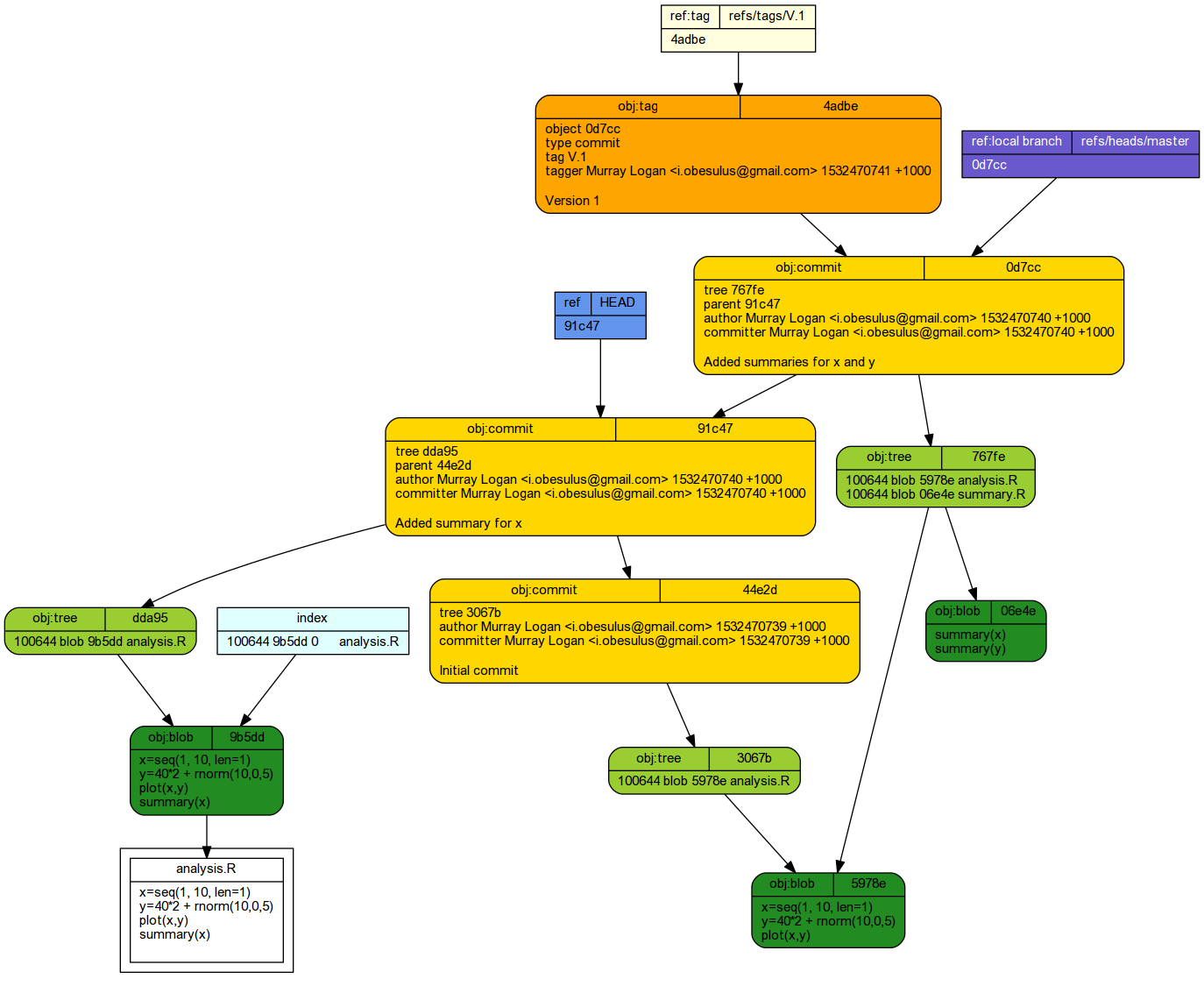

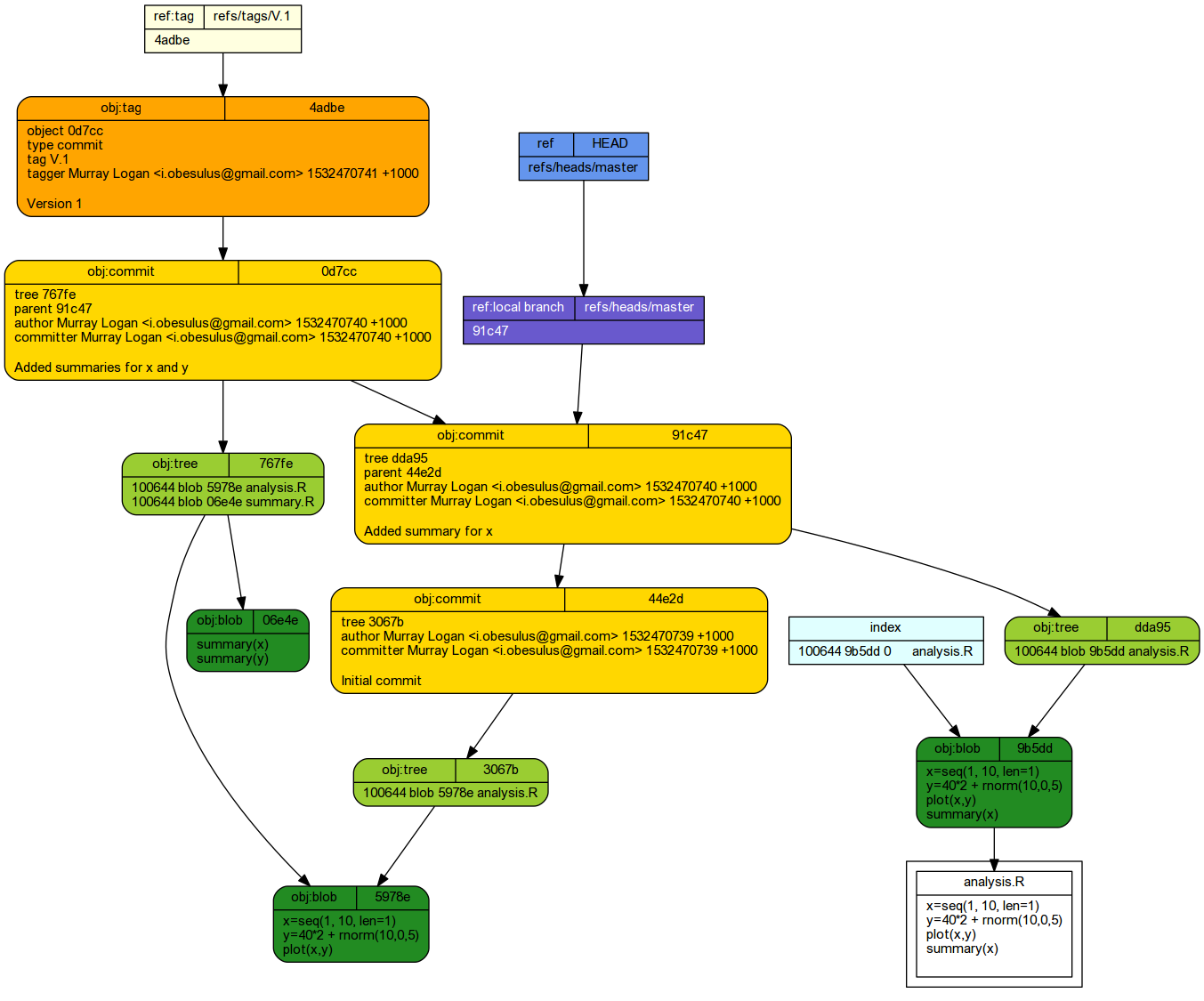

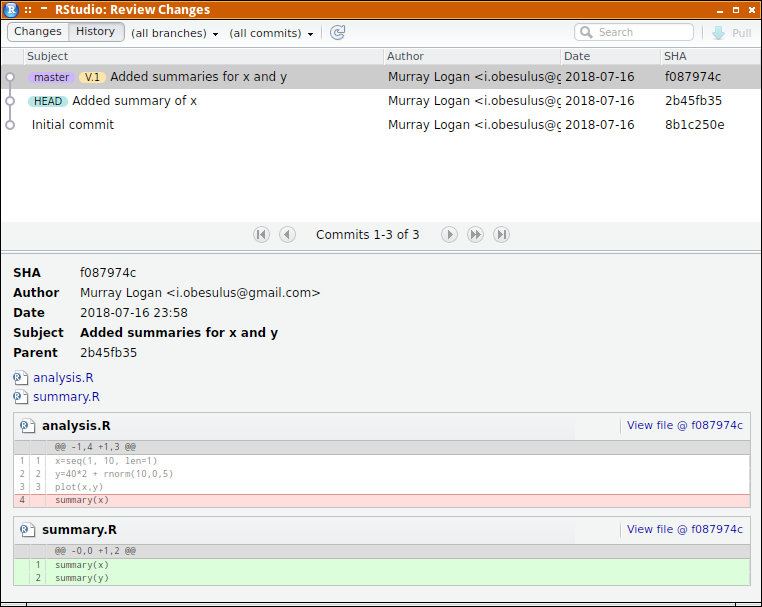

Git - checkout

git checkout #

# is a commit or tag name

git checkout  91c4

RStudio

Git - checkout

Git - checkout

Restore the HEAD to the tip of master

git checkout master

Previous HEAD position was 91c47a6... Added summary for x
Switched to branch 'master'

Git - checkout

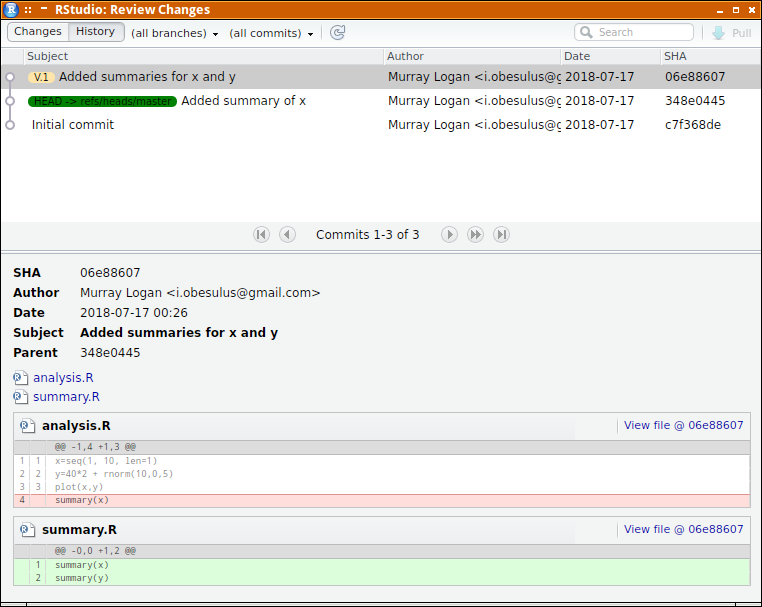

Git - reset

git reset --hard #

# is a commit or tag name

cd ~/tmp/Test_repo
git reset --hard  91c4

RStudio

Git - reset

Git - reset

Restore HEAD to the tag V.1

git reset --hard V.1

HEAD is now at 0d7cc28 Added summaries for x and y

Git - reset

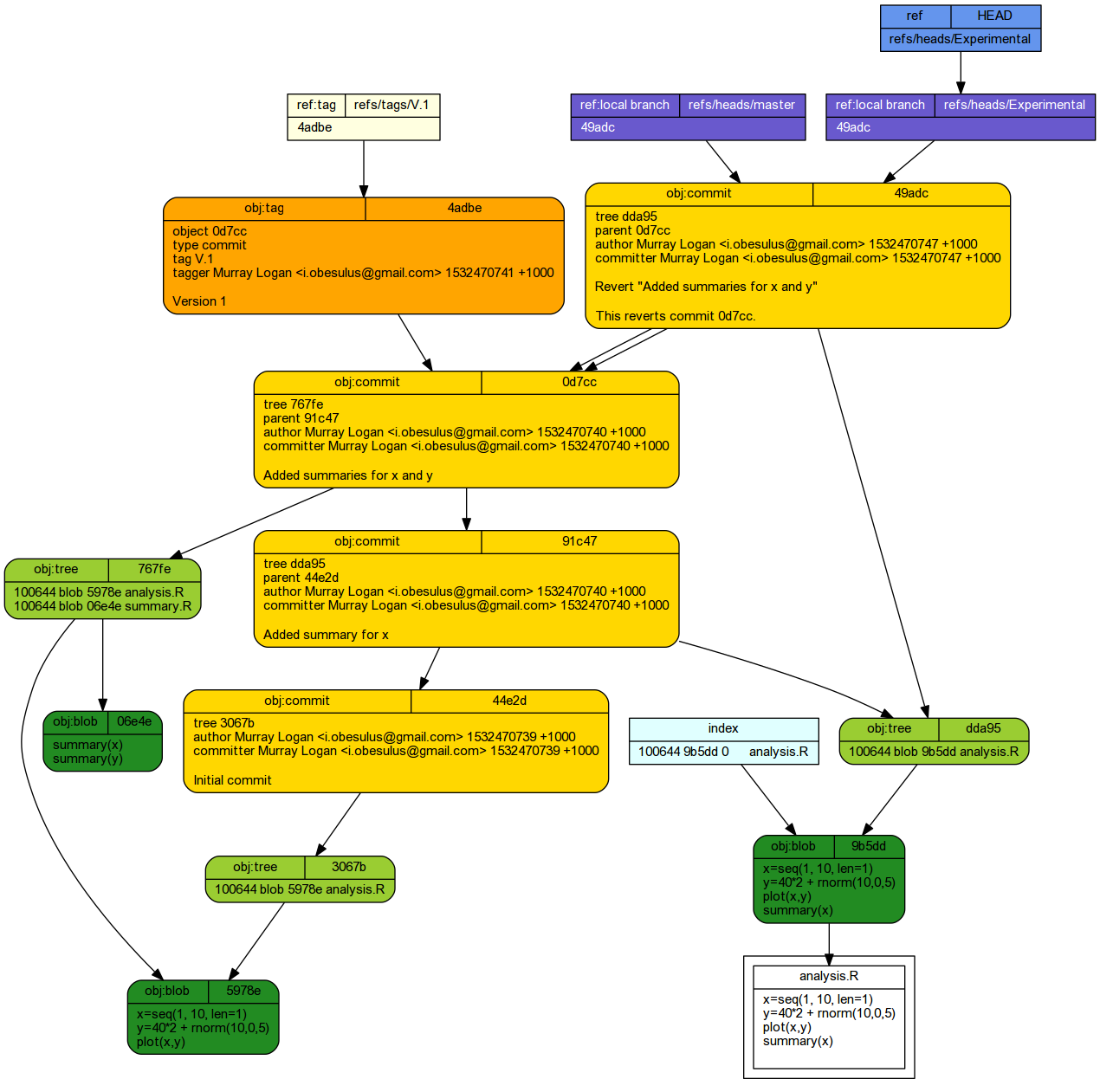

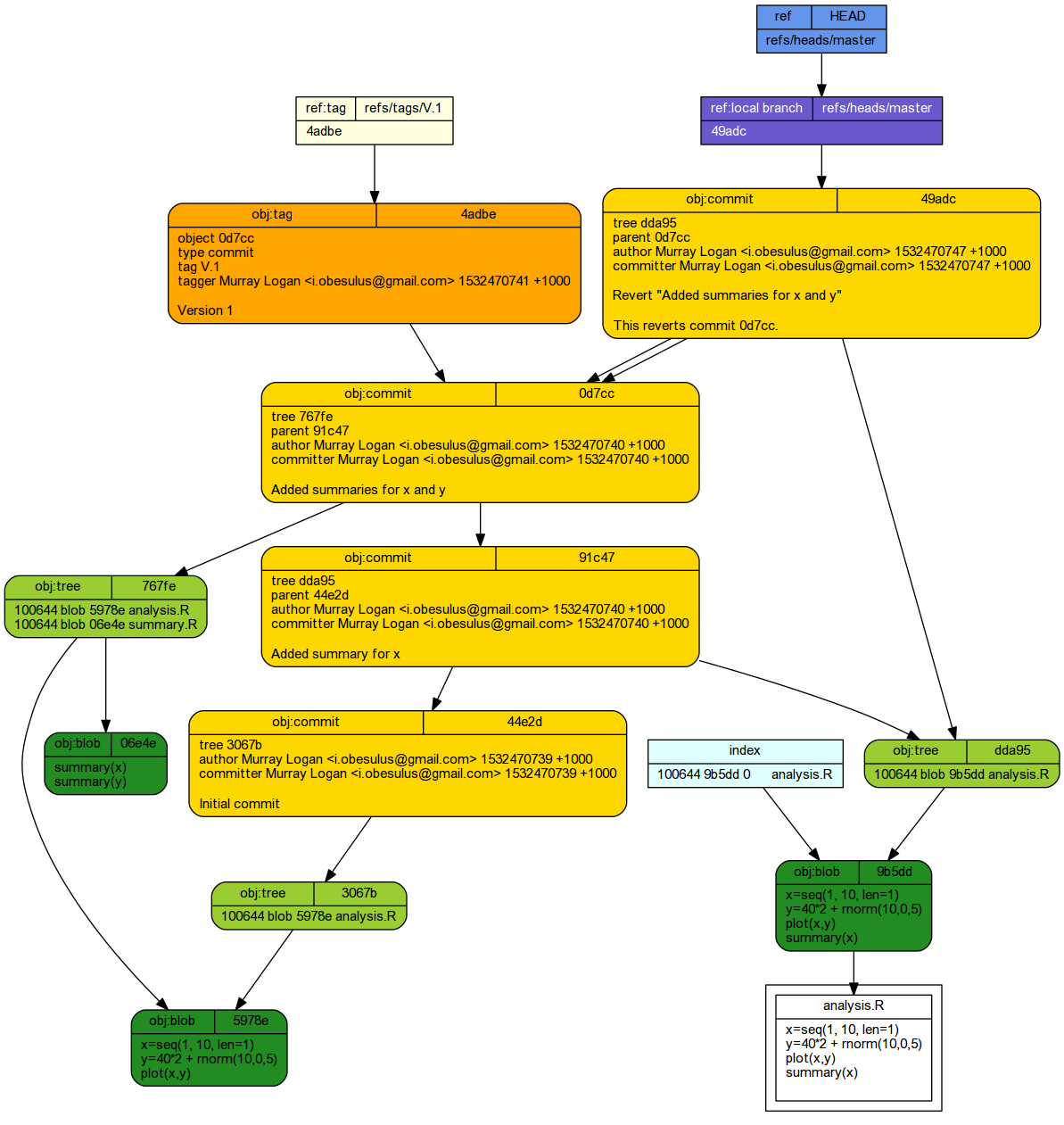

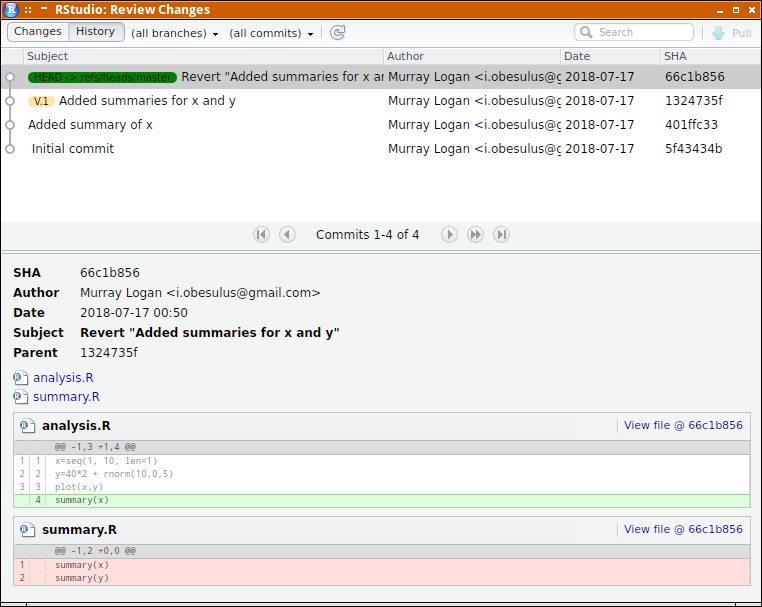

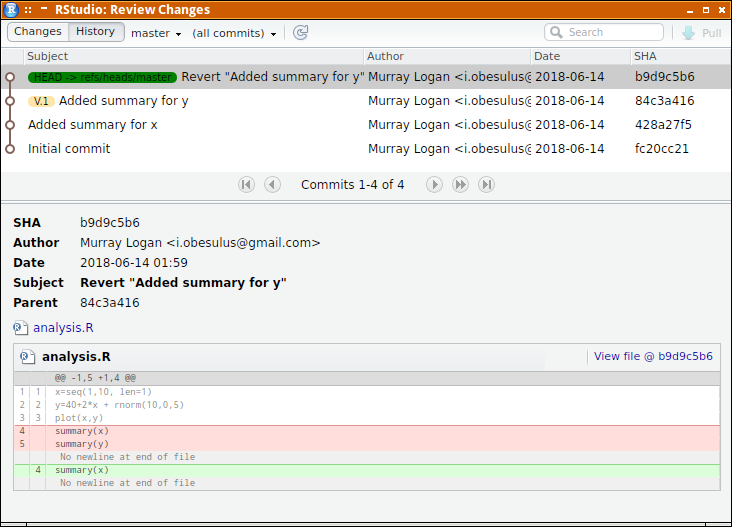

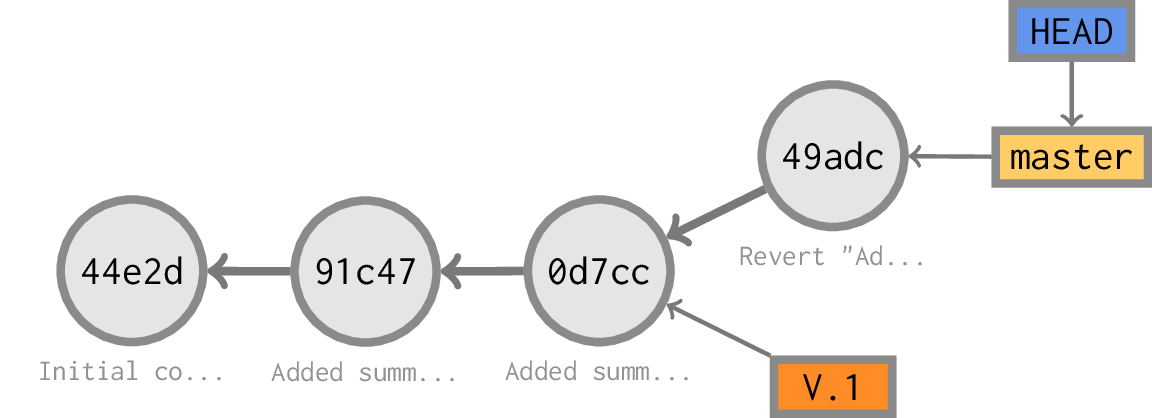

Git - revert

git revert HEAD --no-edit

[master 49adc9e] Revert "Added summaries for x and y"
 2 files changed, 1 insertion(+), 2 deletions(-)
 delete mode 100644 summary.R

RStudio

Git - revert

Git - revert multiples

command line

git revert --no-commit HEAD
git revert --no-commit HEAD~1
git commit -m 'Rolled back'

RStudio

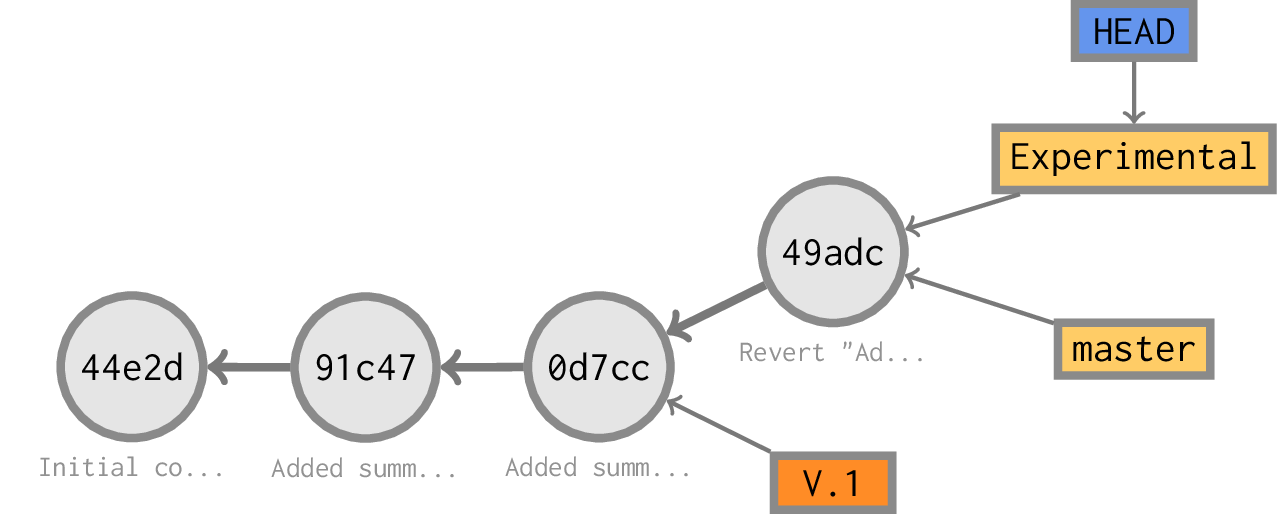

Git - new branch

git checkout -b <Name>

For example

git checkout -b Experimental

RStudio

Git - new branch

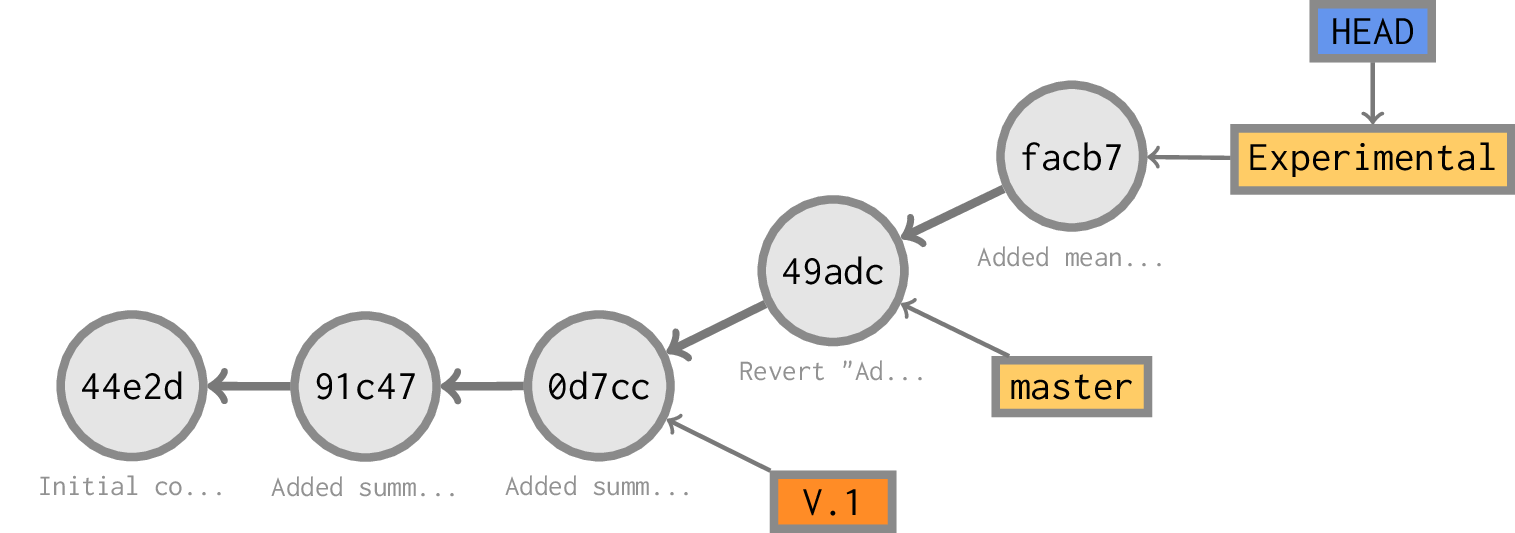

Git - branch

We are on the new branch

• add or edit some content
  • stage and commit

x=seq(1, 10, len=1)
y=40*2 + rnorm(10,0,5)
plot(x,y)
summary(x)
mean(x)

Otherwise, create any kind of file (in the folder we just created)

Git - branch

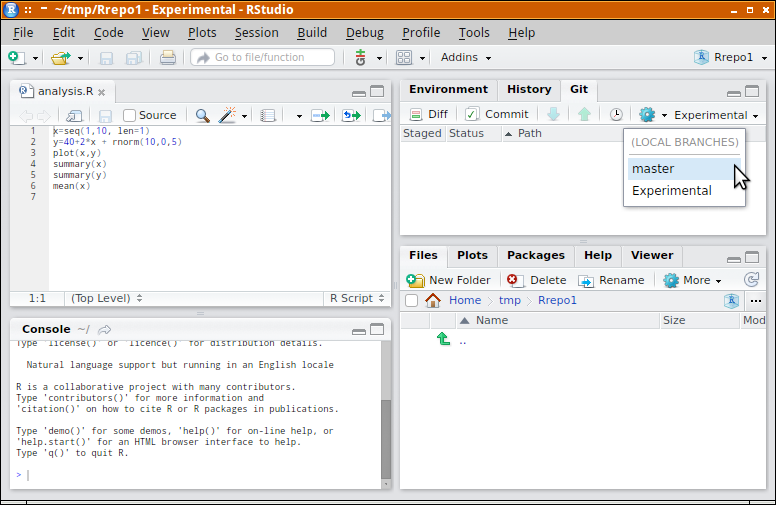

Git - switch branch

git checkout <Name>

For example:

git checkout master

RStudio

Git - switch branch

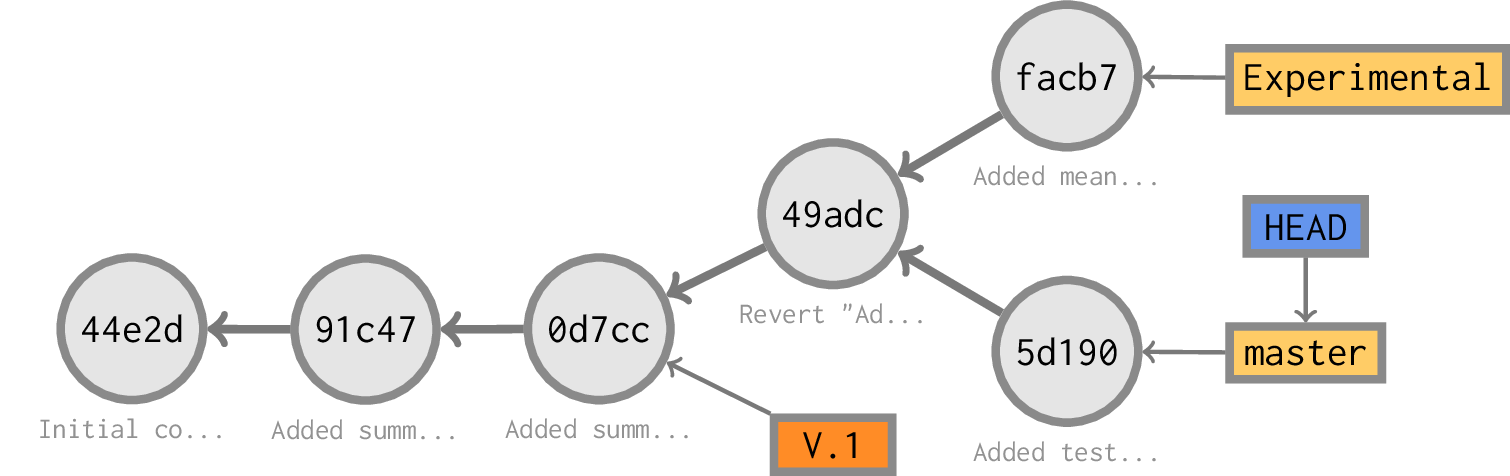

Git - branch

We are on the master branch

• add another file (test.R)
  • stage and commit

mean(c(1,2,3))

Otherwise, create any kind of file

Git - branch

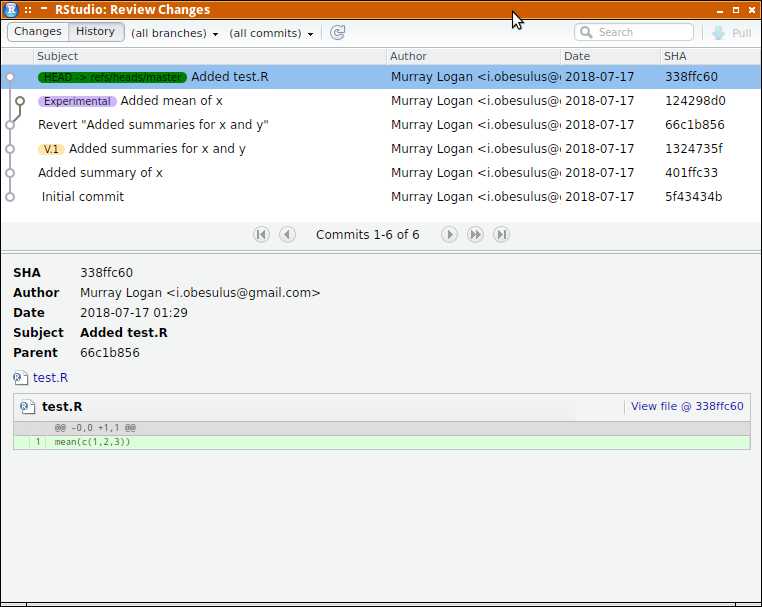

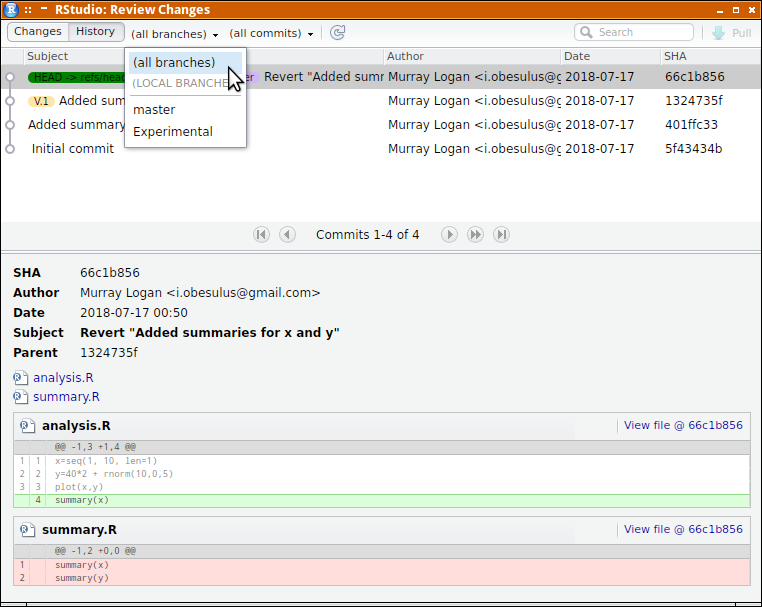

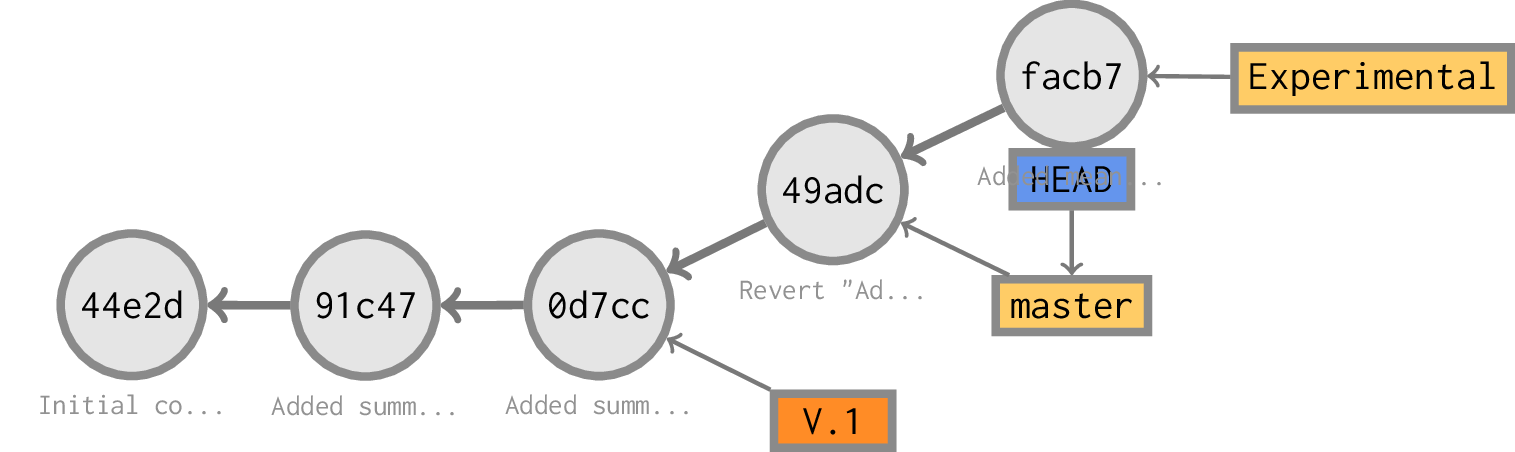

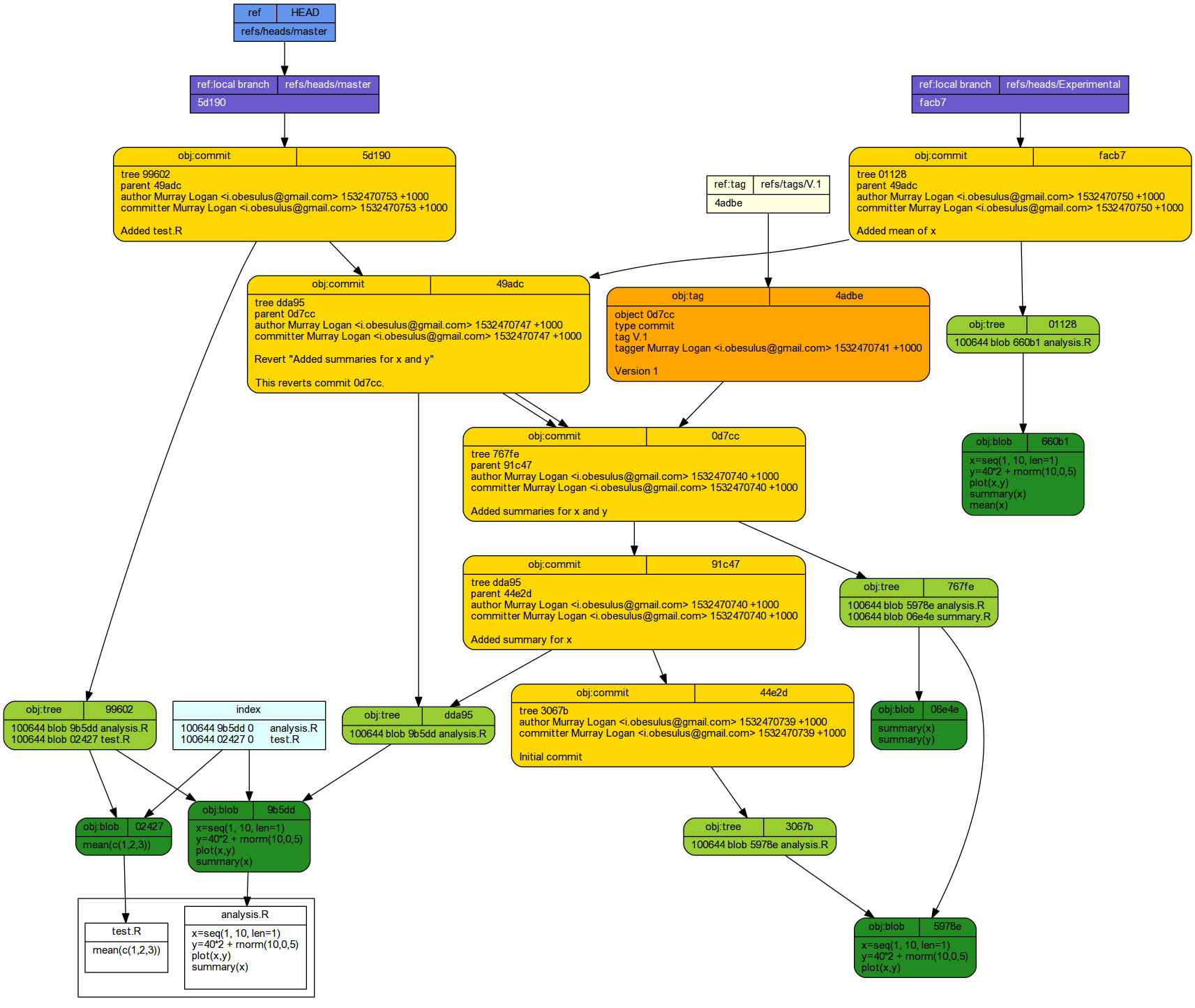

Git - branch log

git log --online --graph --decorate --all

RStudio

Git - diff

git diff master <branch>

For example:

git diff master Experimental

diff --git a/analysis.R b/analysis.R
index 9b5dda9..660b1bc 100644
--- a/analysis.R
+++ b/analysis.R
@@ -2,3 +2,4 @@ x=seq(1, 10, len=1)
 y=40*2 + rnorm(10,0,5)
 plot(x,y)
 summary(x)
+mean(x)
diff --git a/test.R b/test.R
deleted file mode 100644
index 0242716..0000000
--- a/test.R
+++ /dev/null
@@ -1 +0,0 @@
-mean(c(1,2,3))

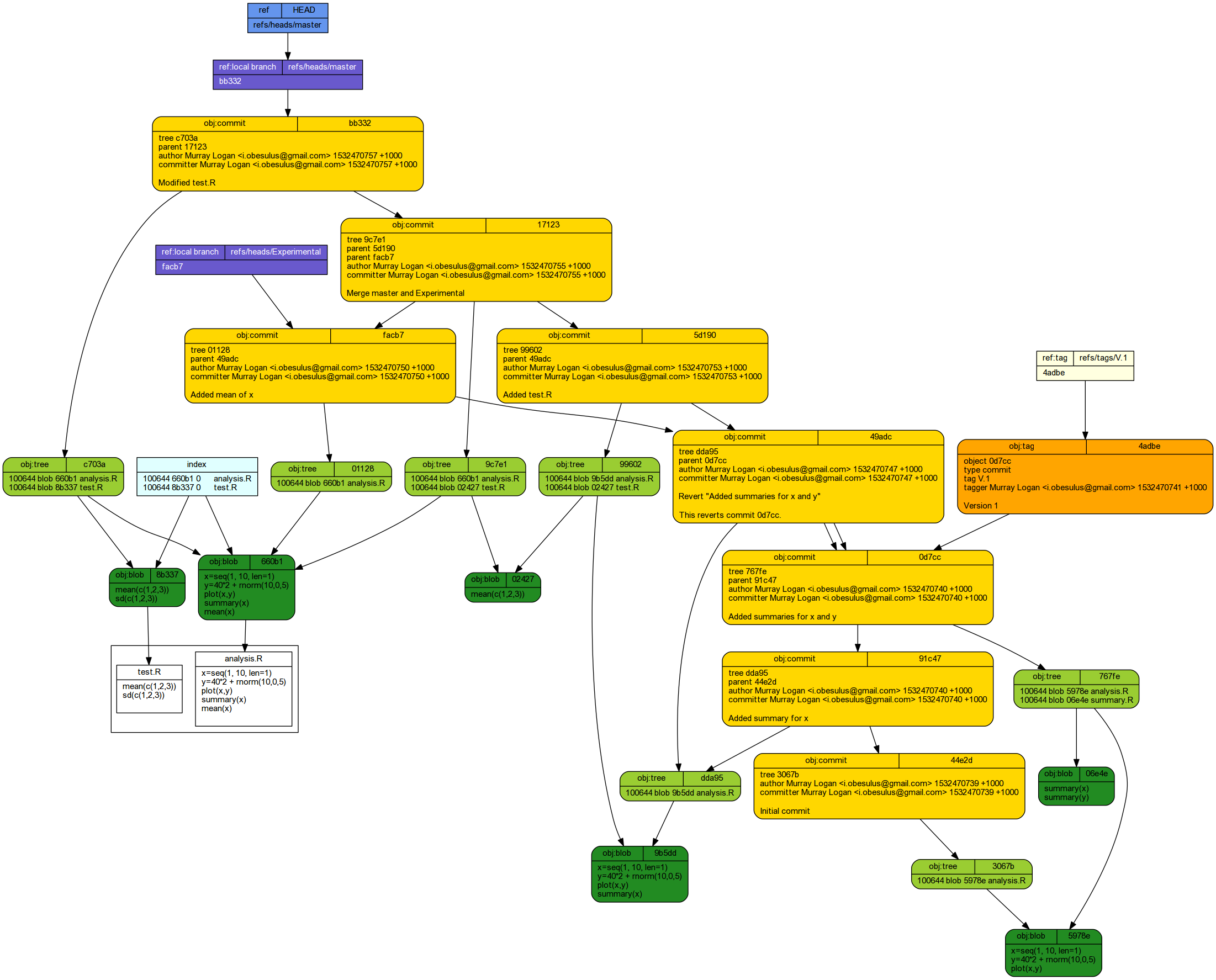

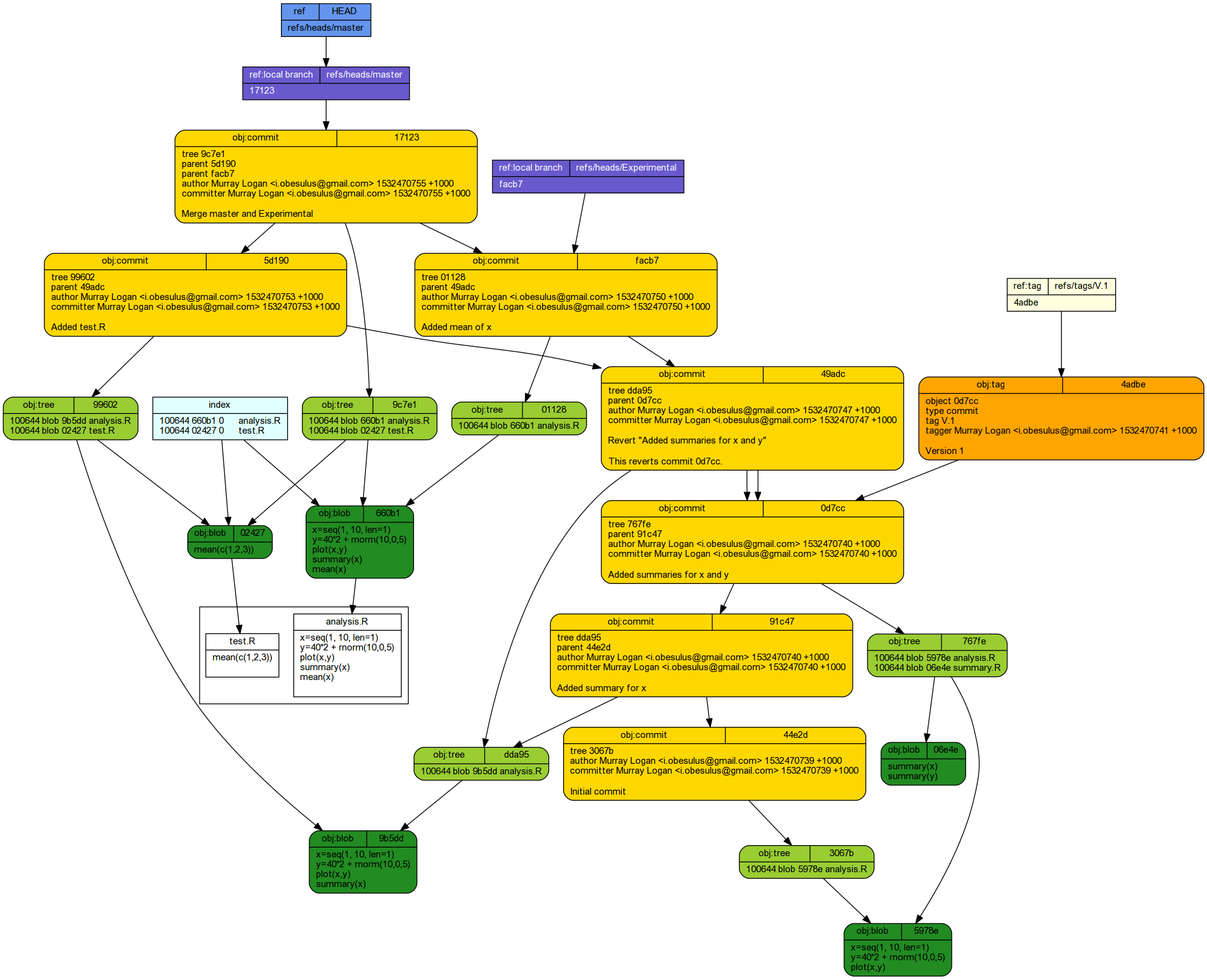

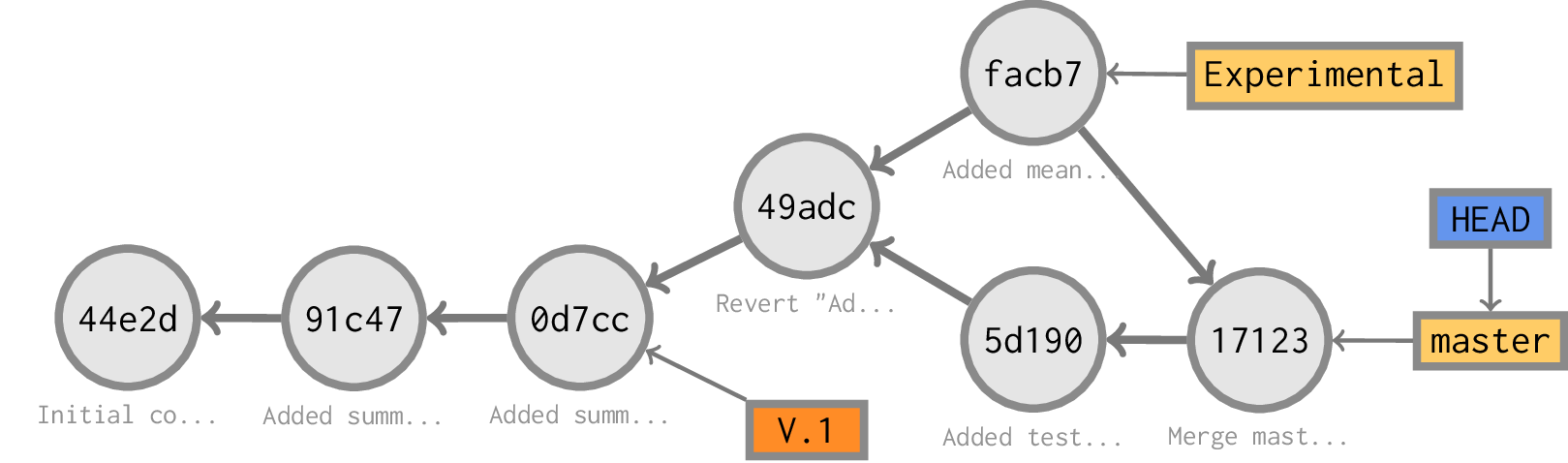

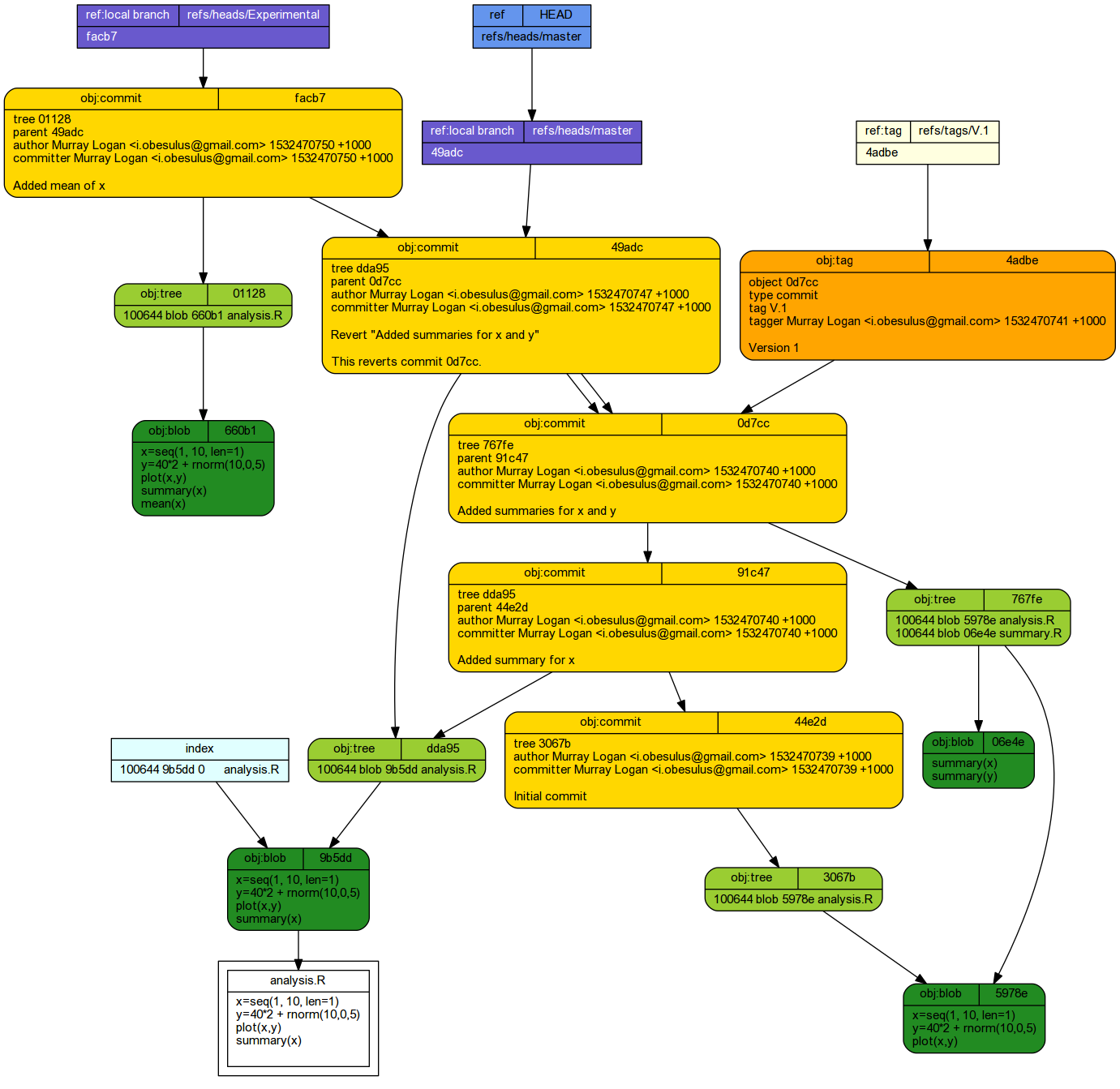

Git - merge branches

git merge <Name>

For example:

cd ~/tmp/Test_repo
git merge Experimental -m 'Merge master and Experimental'

Merge made by the 'recursive' strategy.
 analysis.R | 1 +
 1 file changed, 1 insertion(+)

RStudio

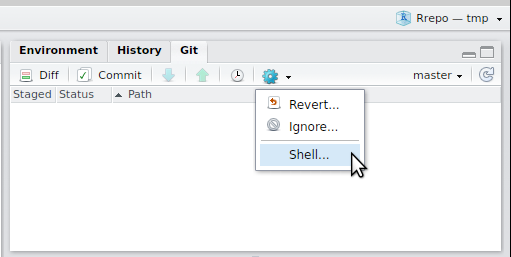

Use the shell

Git - merge branches

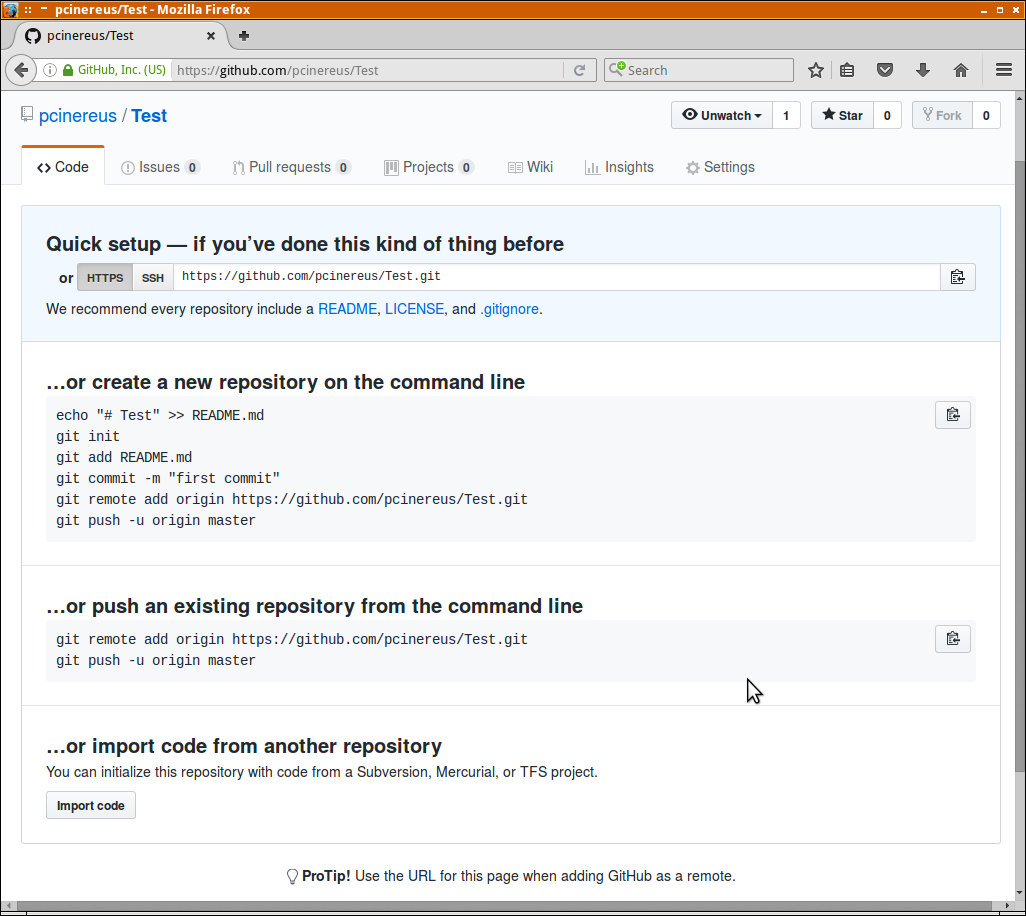

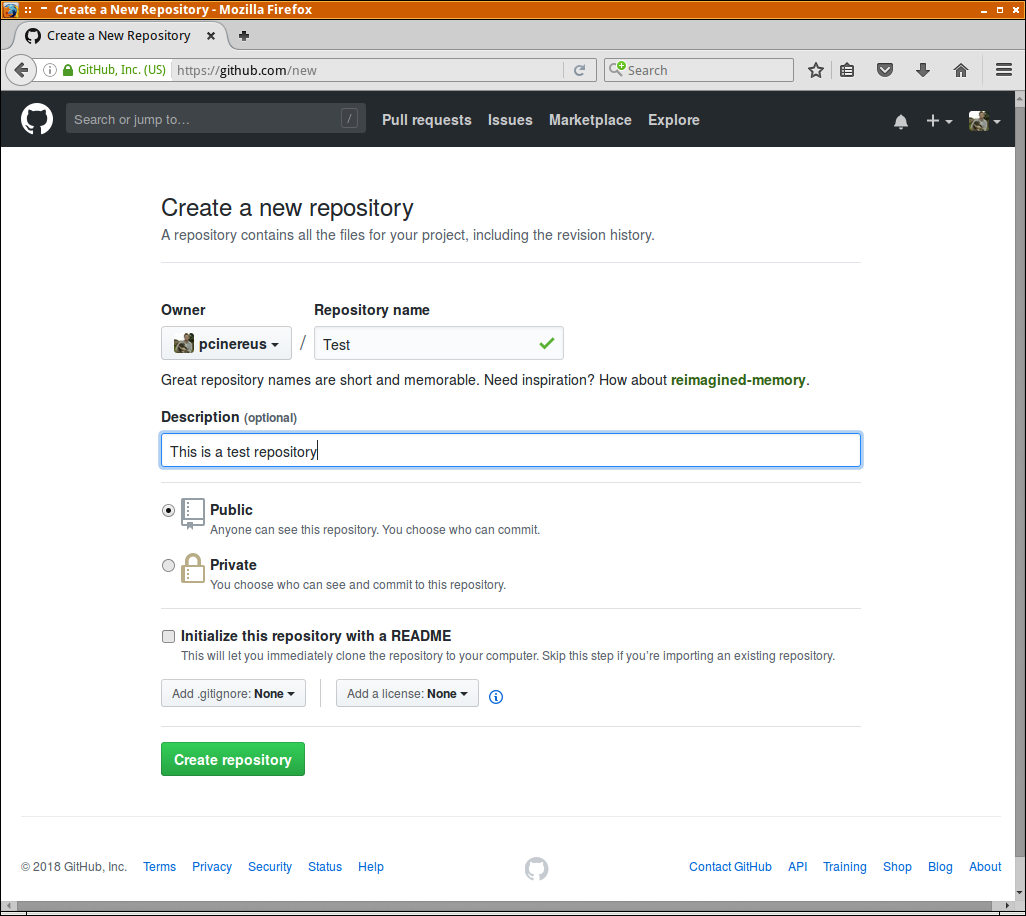

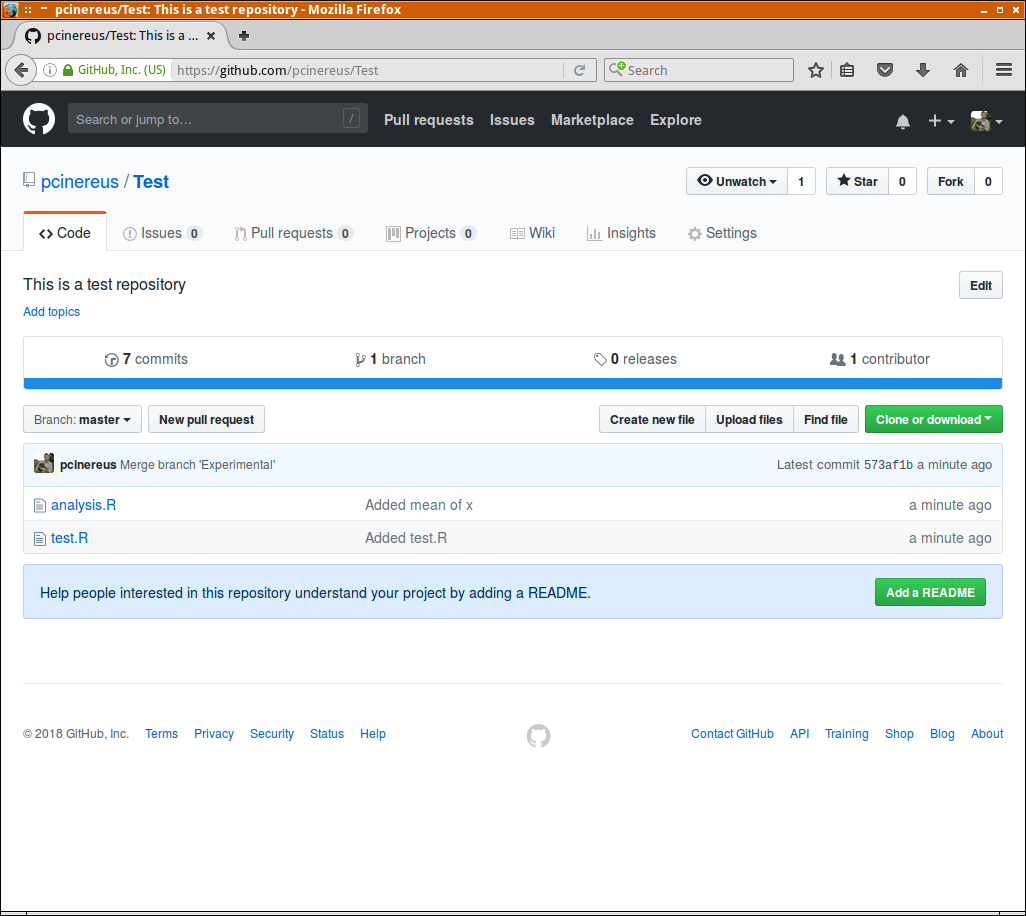

New remote repo

New remote repo

Set remote

cd ~/tmp/Test_repo
git remote add origin https://github.com/pcinereus/Test.git
git push -u origin master

RStudio

Use the shell ….. Um Luke!

Set remote

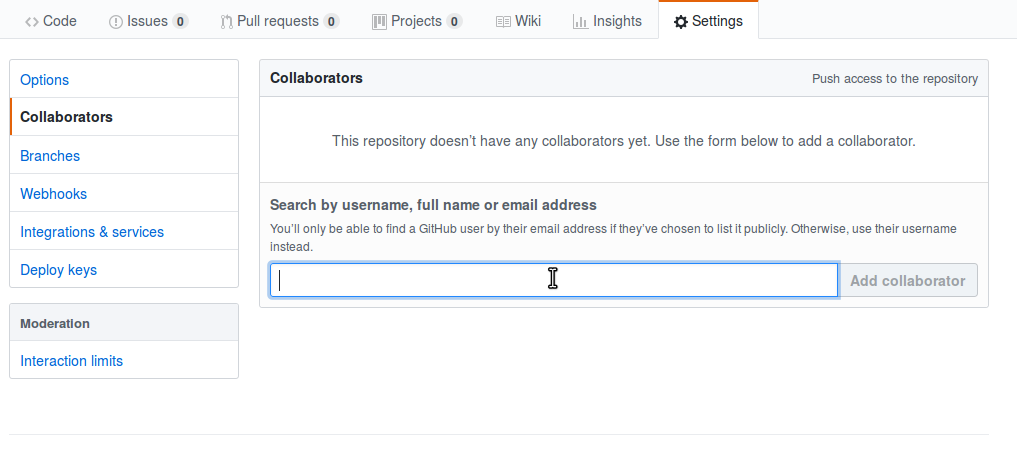

Github - collaborate

Git - another commit

Lets make a small change to one of the files..

mean(c(1,2,3))
sd(c(1,2,3))

Otherwise, create any kind of file

Git - another commit

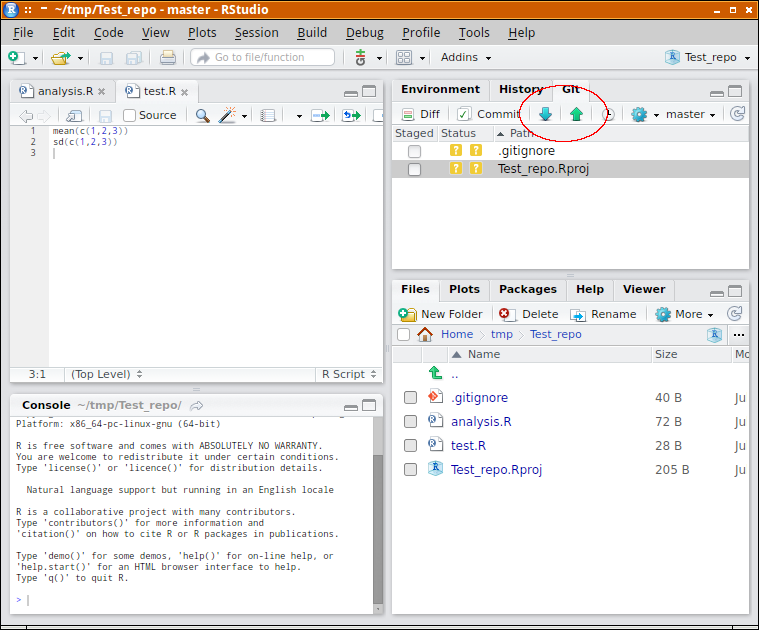

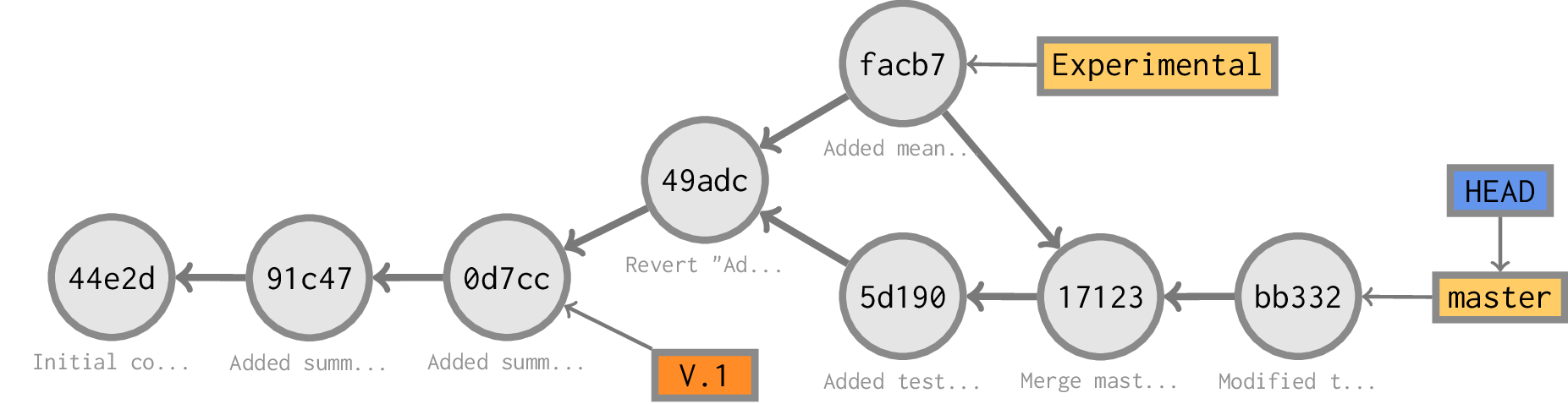

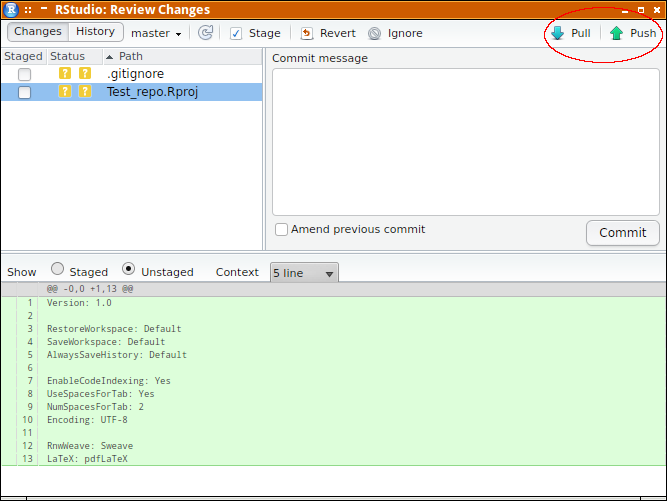

Git - push to repo

git push -u origin master

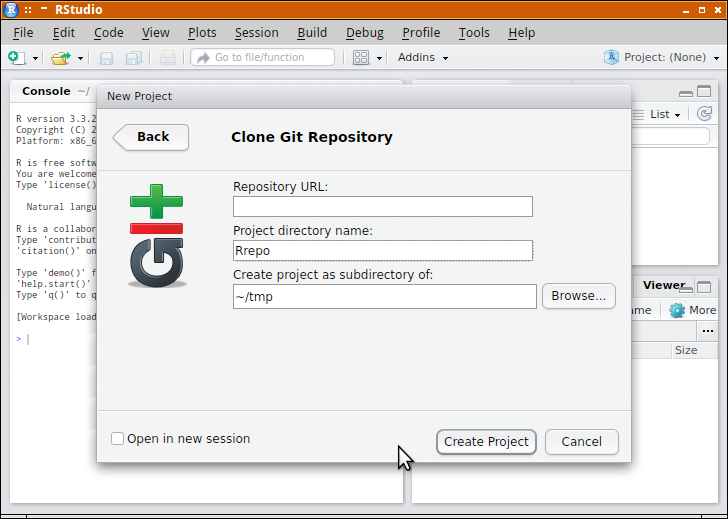

Clone a repo

git clone <git name> <local name>

RStudio

Git - pull

Before making any changes that you intend to push, it is advisable that you pull to get the latest from the remote

git pull -v origin master

Playtime

• Clone the Test repo of the person next to you
• Make a change, commit, push
• Pull the changes of your neighbour

• Try making a branch

Useful resources

• My online tutorial
• git online resources
• git online manual
• Atlassian git tutorials
• A visual git tutorial
• Visualizing git online tool
• Another git visualizing tool
• github online resources
• bit-booster
• Version control with Rstudio and github
